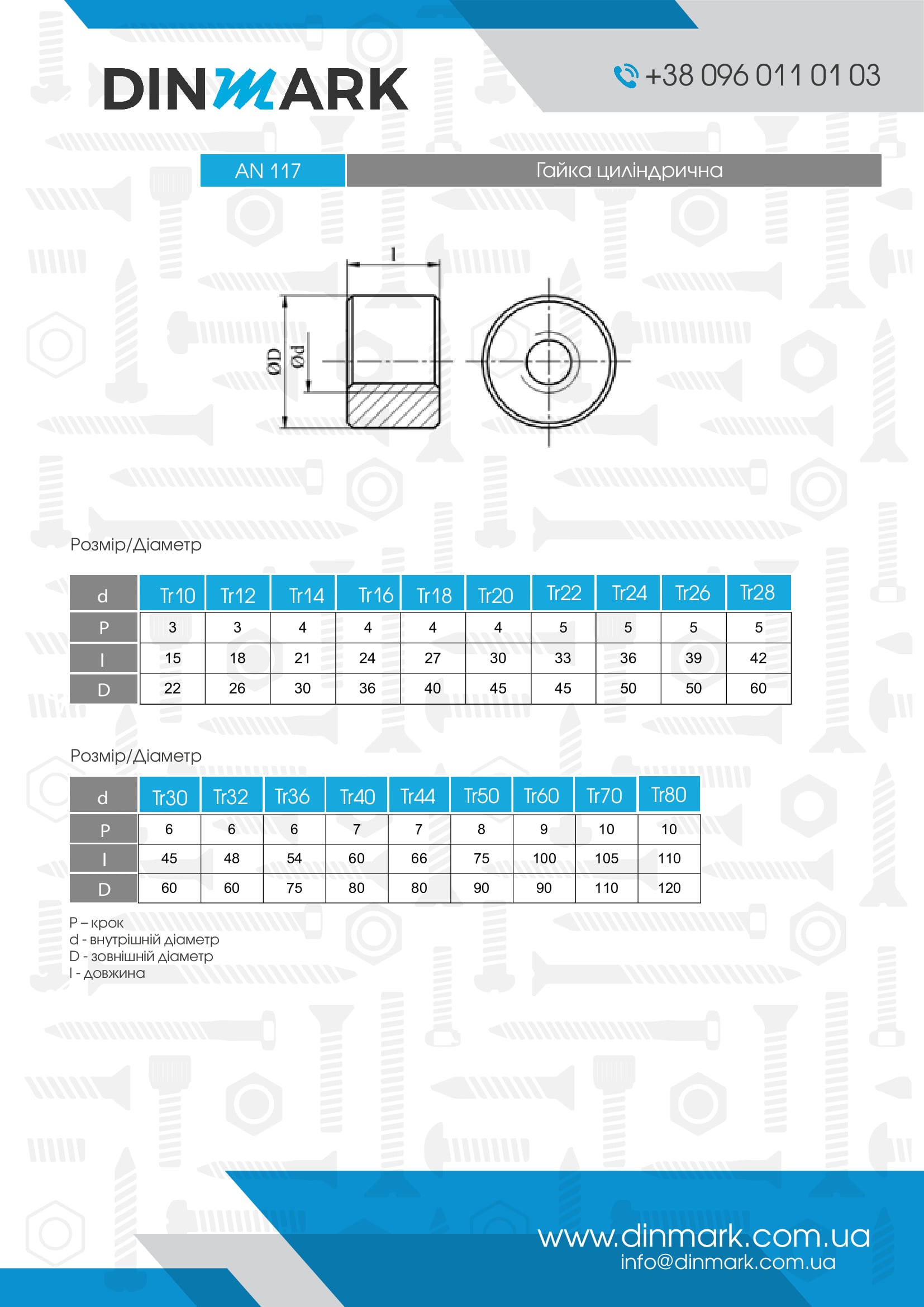

Nut AN 117 Tr20x4 D45 trapezoidal carving
Copy the product name
Warning
Delivery
Payment
Warranty
Register and get a discount on all products
2%
Minimum order amount
1200 UAH
Pickup from branches New mail
Pickup from post offices New mail
Targeted delivery by courier New mail
Pickup from our office in Lviv
Cashless payment for legal entities and individuals according to the invoice
Відеоінструкція:
Article no.
117-20-4(45)
Copy the product article
Packaging шт
5 шт
Weight kg
1,50 kg
Ціна з ПДВ, 1 шт
216,00
UAH
Quantity, шт
Додайте ще шт і заощадьте
10 876.60 грн
Недостатня кількість товару
13
37
Specifications |
|
| Article no. |
117-20-4(45) |
| Type | Cylindrical |
| Coating | Uncovered |
| Threading step, mm | 4 |
| Standard | AN 117, ART 88089 |
| Diameter, mm | 20 |
| Material | Stal |
| Type of carving | Full |
| Thread type | Trapezoidal |
| Packaging, pcs. | 5 |
| Height, mm | 30 |
Show more
Collapse
|
|
Show more
A cylindrical nut with a trapezoidal thread is a fastener designed for use on screws / studs with a corresponding trapezoidal thread to convert rotational motion into a straight line.
Scope AN 117 is used on machines and other equipment whose elements move by means of such threaded connections.
Material high-strength structural alloy steel.
Without coverage.
