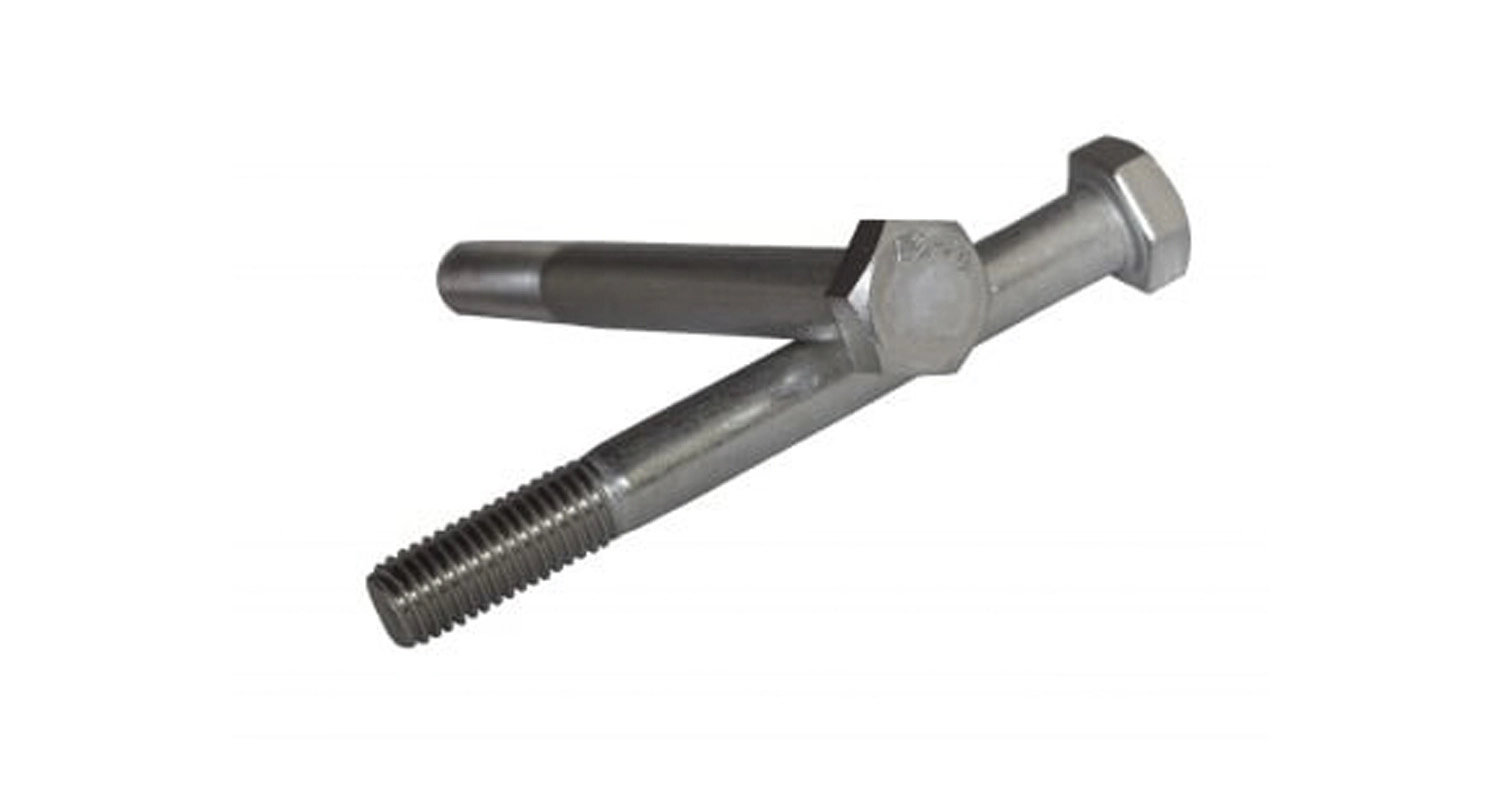

DIN 931 A5 Stainless steel bolt with hexagonal head and partial thread

Overview

The DIN 931 bolt is made of A5 stainless steel, has a hexagonal head and partial metric thread, which provides high corrosion resistance. This thread covers only part of the shank, while the other part remains smooth, making it ideal for applications where stability and reduced friction are important. Diameters range from M6 to M20, in accordance with metric thread standards, allowing you to choose the optimal option for a variety of designs. DIN 931 A5 bolts are ideal for applications in construction, mechanical engineering, and other industries where reliability and durability are required.

Technical specifications

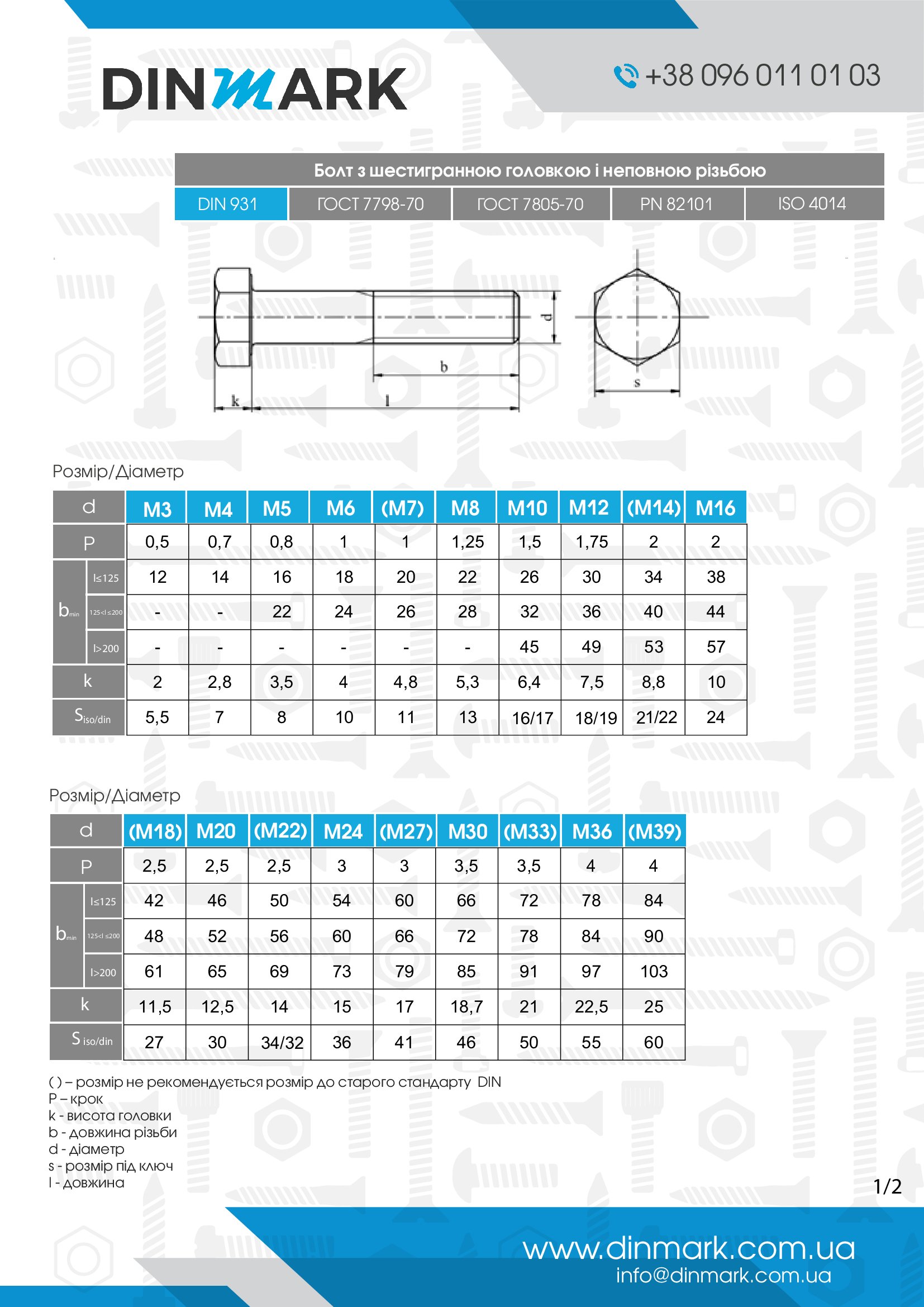

Technical specifications of DIN 931 A4-70 hexagon head bolts with partial thread:

• Nominal diameters: M6 – M20 mm.
• Thread pitch: metric standards such as M6-1.0; M8-1.25; M10-1.5; M12-1.75 and others.
• Thread length: for bolts with a total length L up to 125 mm - approximately 16-30 mm, for L from 125 to 200 mm and above - in accordance with the standard.
• Material: made of A5 stainless steel, making them ideal for use in aggressive environments.

Analogs

The DIN 931 A5 bolt is a stainless steel product with a hexagonal head and partial thread, providing high resistance to corrosion and mechanical stress. This type of bolt is ideal for use in aggressive environments where it is important to maintain the durability and reliability of connections.

Key features of DIN 931 A5:

• Made of A5 stainless steel, which guarantees high corrosion resistance.
• Partial threading ensures a secure connection in structures where ease of installation and removal is important.
• The hexagonal head allows the use of standard tools for tightening, making the installation process convenient and efficient.

Analogs for DIN 931 A5:

• GOST 7798-70 - has the same characteristics and a similar design with partial threading.
• ISO 4014 - an international standard that defines bolts with partial threading, which are equivalent to DIN 931.

Areas of application

The DIN 931 A5 bolt with a hexagonal head and partial thread has a wide range of applications due to its unique characteristics.

• In construction, it is used to connect metal structures, where the partial thread ensures a secure connection of the smooth part, especially in structures subject to loads.
• In mechanical engineering, this bolt is ideal for connecting brackets, housing elements, and other structures that are subject to vibration loads, as A5 stainless steel provides high strength and corrosion resistance.
• The DIN 931 A5 bolt is also ideal for use in aggressive environments, such as outdoor or wet conditions, where reliable connections are required that can withstand the effects of moisture and other aggressive elements.

Questions and Answers

Is it worth buying

The DIN 931 A5 bolt with a hexagonal head and partial thread is an excellent choice for those looking for reliable and corrosion-resistant fasteners. This bolt is made of A5 stainless steel, which provides high strength and durability even in aggressive environments. Available in diameters from M6 to M20 and lengths up to 180 mm, it fits easily into a variety of projects. The bolt can withstand significant loads, making it ideal for use in construction, mechanical engineering, and other industries. Choosing a DIN 931 A5 bolt is an excellent solution for ensuring the reliability and safety of your structures.

Where it is used

DIN 931 A5 hexagon head bolts with partial thread are made of stainless steel, which provides high corrosion resistance. This type of bolt is widely used in construction projects where reliability and durability of connections are important, as well as in the marine and chemical industries due to its ability to withstand aggressive conditions. Available diameters range from M6 to M20, and lengths can reach 180 mm.
