DIN 6923 10 zinc plate Hexagon nut with flange, fine pitch
Copy the product nameAssortment
Technical characteristics
A flanged nut is a fastener that creates a detachable threaded connection with an increased clamping area, which allows both to redistribute pressure on the material and to create a larger friction spot to prevent loosening and use nuts when fastening parts on grooves along which the part can move. DIN 6923 has a standard height for these types of nuts, a wider flange than 6331, but thinner, and can have a flat surface and serrated notch to prevent loosening.
Area of use: DIN 6923 is used in industrial construction, machine tool and instrument making, etc.
Material: high-strength structural alloy steel. The high strength class 8 allows the nuts to be used in heavy-duty connections.
Coating: Zinc plate protects against corrosion if the fasteners are to be used in aggressive environments.
Equivalents: GOST P 50592-93, ISO 4161, ISO 10663.
Product reviewed 14 users per year
Warning
Delivery
Payment
Warranty
Register and get a discount on all products
2%
Minimum order amount
1200 UAH
Pickup from branches New mail
Pickup from post offices New mail
Targeted delivery by courier New mail
Pickup from our office in Lviv
Cashless for legal entities and individuals
According to the invoice or the terms of the individual agreement
Відеоінструкція:
«Як здійснити оплату через Privat 24»
Відеоінструкція:

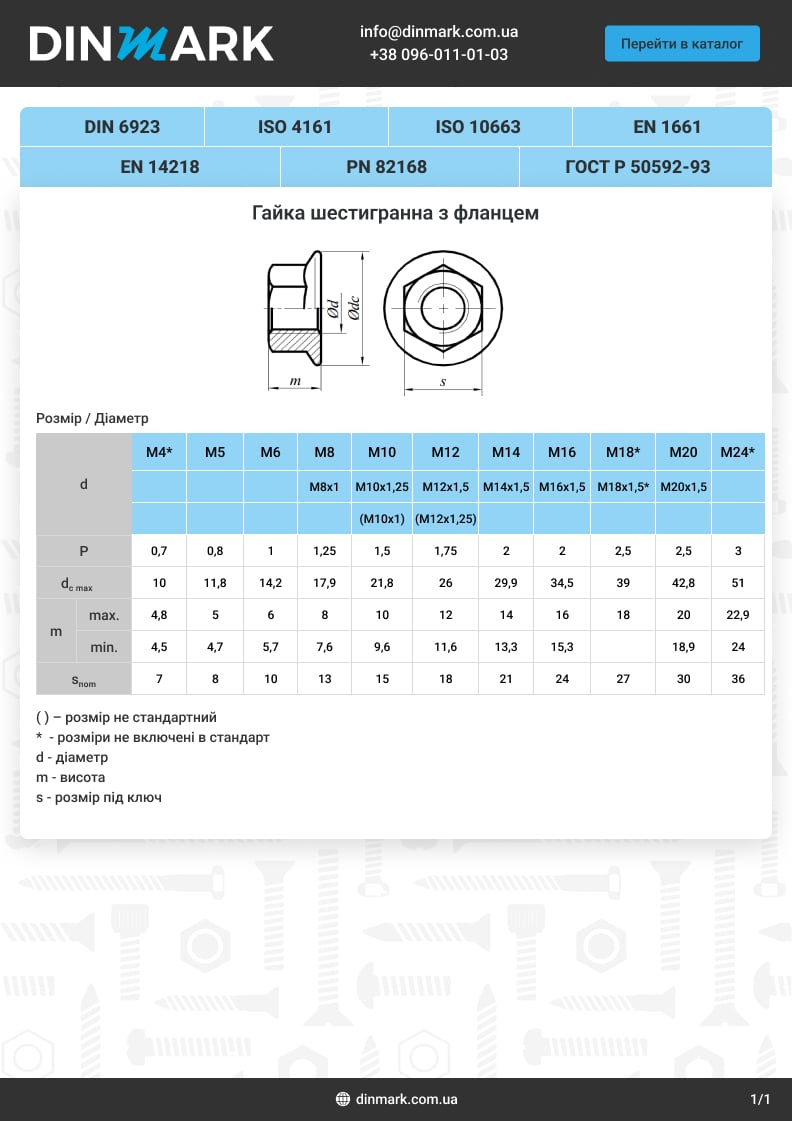

Specifications |
|
| Fastening group | High-strength fastening |
| Standard | DIN 6923EN 14218PN 82168ISO 4161ISO 10663EN 1661ГОСТ P 50592-93 |
| Material | Stal |
| Strength class | 10 |
| Coating | Flake zink |
| Diameter, mm | 121416 |
| Height, mm | 121416 |
| Thread type | Metric |
| Threading step, mm | 1.5 |
| Type | Flanged |
Show more
Product
Name and article number
Size
Diameter, mmHeight, mm
Price including VAT, UAH/unit
Retail price
Your price
-3%
-7%
Available in stock
The term of departure
Cost calculator
Quantity, pcs.
Packaging and weight
Total price including VAT, UAH
Purchase
Compare or like
Nut DIN 6923 M16x1,5 10 zinc shawl jagged
6923-16-1,5-10цпз
Diameter, mm>
Height, mm>
16
16
Price including VAT, UAH/unit
Retail price
Your price
-3%
-7%
-
-
-
-
-
-
Available in stock
The term of departure
Total price including VAT, UAH
Addmore pcs.
and save money
10 876.60 грн
-
+
50 pcs.
2.41 kg
Nut DIN 6923 M12x1,5 10 zinc flake jagged
6923-12-1,5-10цпч
Diameter, mm>
Height, mm>
1200
1200
Price including VAT, UAH/unit
Retail price
Your price
-3%
-7%
11,44
11,44
11,10
> 800 pcs.
10,64
> 4000 pcs.
Available in stock
The term of departure
Total price including VAT, UAH
Addmore pcs.
and save money
10 876.60 грн
-
+
100 pcs.
1.86 kg
0
Buy
Nut DIN 6923 M14x1,5 10 zinc flake jagged
6923-14-1,5-10 ц
Diameter, mm>
Height, mm>
1400
1400
Price including VAT, UAH/unit
Retail price
Your price
-3%
-7%
-
-
-
-
-
-
Available in stock
The term of departure
Total price including VAT, UAH
Addmore pcs.
and save money
10 876.60 грн
-
+
50 pcs.
1.4 kg
Buy and order
