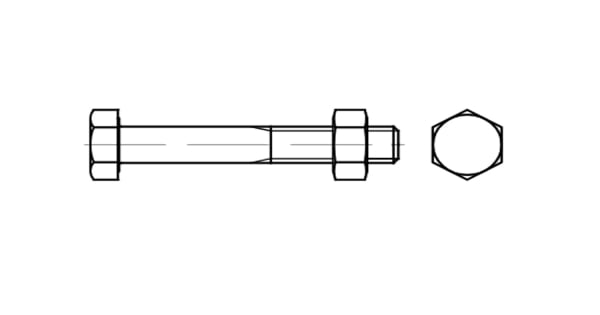

Hexagonal head bolt and nut DIN 601

Buy DIN 601

DIN 601 4,6 hot zinc hexagon head Bolt and nut

DIN 601 4,6 hot zinc hexagon head Bolt and nut

DIN 601 4,6 hot zinc hexagon head Bolt and nut StandardDIN 601MaterialStalStrength class4.6CoatingHot zinkDiameter, mm10, 12, 16, 20..Length, mm20, 25, 30, 35..HeadHexagonalPackaging, pcs.200, 100, 25, 10..Type of carvingPartiallyThread typeMetricThreading step, mm1.5, 1.75, 2, 2.5..Turnkey size, mm24, 30AnalogISO 4016

New

DIN 601 4,6 zinc hexagon head Bolt and nut

DIN 601 4,6 zinc hexagon head Bolt and nut

DIN 601 4,6 zinc hexagon head Bolt and nut StandardDIN 601MaterialStalStrength class4.6CoatingZincDiameter, mm5, 6, 8, 10, 12..Length, mm10, 12, 16, 20..HeadHexagonalPackaging, pcs.500, 200, 100, 25..Type of carvingPartiallyThread typeMetricThreading step, mm0.8, 1, 1.25, 1.5..Turnkey size, mm8, 10, 13, 24, 30..Thread length80AnalogISO 4016

New

DIN 601 4,6 hexagon head Bolt and nut

DIN 601 4,6 hexagon head Bolt and nut StandardDIN 601MaterialStalStrength class4.6CoatingUncoveredDiameter, mm5, 6, 8, 10, 12..Length, mm16, 20, 25, 30..HeadHexagonalPackaging, pcs.200, 100, 25, 10..Type of carvingPartiallyThread typeMetricThreading step, mm0.8, 1, 1.25, 1.5..Turnkey size, mm8, 10, 13, 24, 27..Thread length100, 160AnalogISO 4016

Technical characteristics DIN 601

Дивіться ще більше експертних відео на нашому Ютуб каналі

Експертний відеоблог

Specifications Hexagonal head bolt and nut DIN 601 | Dinmark>

Look over PDF drawings

Specifications

Standard

DIN 601

Material

Stal

Strength class

4.6

Coating

Uncovered

Diameter, mm

5 6 8 10 12 14 16 18 20 22 24 27 30 33 36 39 42 45 48

Length, mm

10 12 16 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 120 130 140 150 160 170 180 190 200 220 240 250 260 280 300 320 340 360 380 400 402 420 440 460 480 500 520 540 560 580 600

Head

Hexagonal

Packaging, pcs.

200 100 25 10 50 5

Type of carving

Partially

Thread type

Metric

Threading step, mm

0.8 1 1.25 1.5 1.75 2 2.5 3 3.5 4 4.5 5

Turnkey size, mm

8 10 13 24 27 30 36 41 46 50 55 60 65 70

Thread length

80 100 160

Analog

ISO 4016

DIN 601 hexagonal head and nut bolts have a metric thread and a diameter of 12 mm to 36 mm. Their heads are hexagonal, which allows them to be used with wrenches for tightening and loosening.

When selecting DIN 601 bolts, the bolt diameter, length, strength, and coating must be taken into account. The appropriate wrench must be used to tighten the bolts to ensure the correct torque and to maintain the strength of the connection.

Strength class DIN 601

DIN 601 bolts are made of steel of strength class 4.6.

Materials for the manufacture of DIN 601 bolts

DIN 601 bolts are highly durable and corrosion-resistant because they are made of 4.6 carbon steel with a galvanized steel coating. This ensures a long service life of the bolts and protection against corrosion that can occur in conditions of high humidity or chemical attack.

Areas of application for DIN 601 bolts

DIN 601 bolts with hexagonal head and nut are used in a variety of applications, including

Construction: used to connect metal structures such as walls, pillars, beams and other building elements.
Mechanical engineering: used to connect metal parts in mechanisms and machines.
Transportation: used to connect various elements in vehicles, such as cars, railroad cars, airplanes, and other vehicles.
Engineering: used to connect metal structures in large engineering structures such as bridges, towers, pipelines and other structures.
Electrical engineering: used to connect various elements in electrical equipment such as electric motors and other electronic devices.
Agriculture: used to connect various elements in agriculture, such as tractors and other agricultural machinery.

In general, DIN 601 hexagonal head and nut bolts are used in any industry where it is necessary to connect two or more metal parts into a stable and strong connection.
