Bolt with semi-circular head and projection (whisker) DIN 607

Analogs DIN 607:

TABLE OF CONFORMITY DIN, ISO, AN, ART, GOST

ГОСТ 7801-81

Buy DIN 607

New

DIN 607 4,6 Bolt with semicircular head and protrusion (mustache)

DIN 607 4,6 Bolt with semicircular head and protrusion (mustache)

DIN 607 4,6 Bolt with semicircular head and protrusion (mustache) StandardDIN 607MaterialStalStrength class4.6CoatingUncoveredDiameter, mm8, 10, 12, 16Length, mm20, 25, 30, 35..HeadSemicircularPackaging, pcs.200, 100, 50Type of carvingPartiallyThread typeMetricThreading step, mm1.25, 1.5, 1.75..AnalogГОСТ 7801-81Popular nameFurniture bolt

Technical characteristics DIN 607

Дивіться ще більше експертних відео на нашому Ютуб каналі

Експертний відеоблог

Specifications Bolt with semi-circular head and projection (whisker) DIN 607 | Dinmark>

Look over PDF drawings

Specifications

Standard

DIN 607

Material

Stal

Strength class

4.6

Coating

Uncovered

Diameter, mm

8 10 12 16

Length, mm

20 25 30 35 40 45 50 60

Head

Semicircular

Packaging, pcs.

200 100 50

Type of carving

Partially

Thread type

Metric

Threading step, mm

1.25 1.5 1.75 2

Analog

ГОСТ 7801-81

Popular name

Furniture bolt

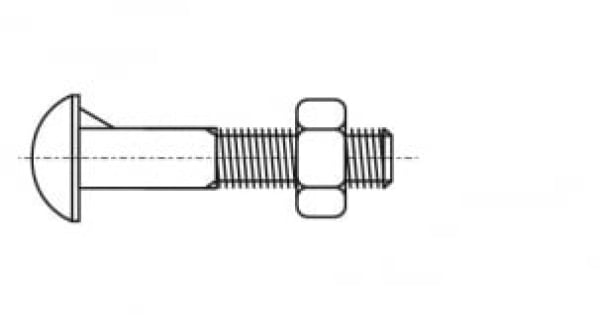

The DIN 607 semi-circular head and tendril bolt is a fastener that consists of a semi-circular head and a tendril on the headrest. These bolts are used in conjunction with nuts. The presence of a tendril indicates that they are intended to connect structural components made of softer material than metal, such as wood.

Strength class DIN 607

The strength class of a Din 607 bolt is the maximum applied force at which the bolt begins to fracture. Din 607 bolts are manufactured in strength class 4.6.

Materials for the manufacture of DIN 607 bolts

DIN 607 bolts are made of steel of strength class 4.6.

Areas of application for DIN 607 bolts

They are used in the furniture industry, during installation, they cut into the wood with a whisker to prevent turning, and are also sometimes used in mechanical engineering.
