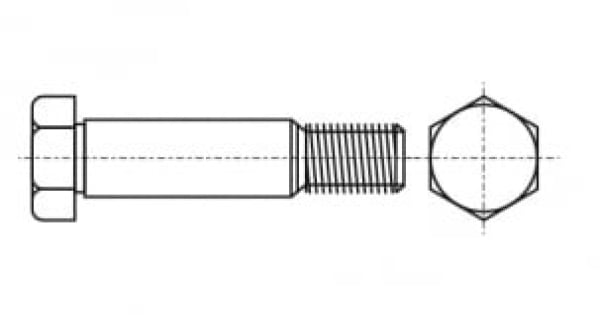

Ground bolt with hexagonal head DIN 609

Analogs DIN 609:

Buy DIN 609

DIN 609 10,9 shoulder Bolt with hexagon head

DIN 609 10,9 shoulder Bolt with hexagon head

DIN 609 10,9 shoulder Bolt with hexagon head Fastening groupHigh-strength..StandardDIN 609MaterialStalStrength class10.9CoatingUncoveredDiameter, mm8, 10, 12, 16, 20..Length, mm25, 30, 35, 40..HeadHexagonalPackaging, pcs.100, 25, 10, 50..Type of carvingPartiallyField of applicationAgricultureThread typeMetricThreading step, mm1.25, 1.5, 1.75..Turnkey size, mm13, 16, 18, 24..AnalogPN 82342..OEM numbers216448 Claas, 216142..

New

DIN 609 8,8 shoulder Bolt with hexagon head

DIN 609 8,8 shoulder Bolt with hexagon head

DIN 609 8,8 shoulder Bolt with hexagon head Fastening groupHigh-strength..StandardDIN 609MaterialStalStrength class8.8CoatingUncoveredDiameter, mm8, 10, 12, 14, 16..Length, mm25, 30, 32, 35..HeadHexagonalPackaging, pcs.25, 1..Type of carvingPartiallyThread typeMetricThreading step, mm1.25, 1.5, 1.75..Turnkey size, mm13, 16, 18, 21..AnalogPN 82342..OEM numbers239104 Claas

Technical characteristics DIN 609

Дивіться ще більше експертних відео на нашому Ютуб каналі

Експертний відеоблог

Specifications Ground bolt with hexagonal head DIN 609 | Dinmark>

Look over PDF drawings

Specifications

Fastening group

High-strength fastening

Standard

DIN 609

Material

Stal

Strength class

8.8

Coating

Uncovered

Diameter, mm

8 10 12 14 16 20 24 30 36

Length, mm

25 30 32 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 120 130 140 150 160 180 200

Head

Hexagonal

Packaging, pcs.

25 1 10 50 5

Type of carving

Partially

Thread type

Metric

Threading step, mm

1.25 1.5 1.75 2 2.5 3 3.5 4

Turnkey size, mm

13 16 18 21 24 30 36 46 55

Analog

PN 82342 ГОСТ 7817-70

OEM numbers

239104 Claas 216142 Claas

Field of application

Agriculture

Socket bolt - a bolt of different lengths with a reduced hexagonal head and a partial thread (the thread is longer than in DIN 610). This is a fastening element used to create a reliable connection, the design of which is characterized by a long threaded stud. The bolt is distinguished from other fasteners by the presence of a hexagonal head, a small or large metric thread. Used with a washer and/or nut, and a wrench or socket wrench for installation.

Strength class DIN 609

Bolt strength class DIN 609 is the maximum applied force at which the bolt begins to break. DIN 609 bolts are manufactured in strength class 10.9.
High-strength DIN 609 should only be purchased from proven suppliers. It is made of alloy steel and such bolts are used for responsible projects where, in addition to high loads and static loads, the DIN 609 bolt is subjected to constant vibration. Such bolts will be especially relevant in bridge construction, instrument construction, as well as in structures located near objects subject to vibration.

Fastening group DIN 609

High-strength bolts are made only from high-strength steel and belong to the High-strength fastener group.

Materials for making DIN 609 bolts

High strength bolts are made from only high strength structural alloy steel. The high strength class 10.9 allows the use of bolts in highly loaded connections.

Area of application of DIN 609 bolts

The DIN 609 bolt is used to connect and fasten parts, structures in construction and mechanical engineering for installation in a precisely machined landing hole without clearance.
