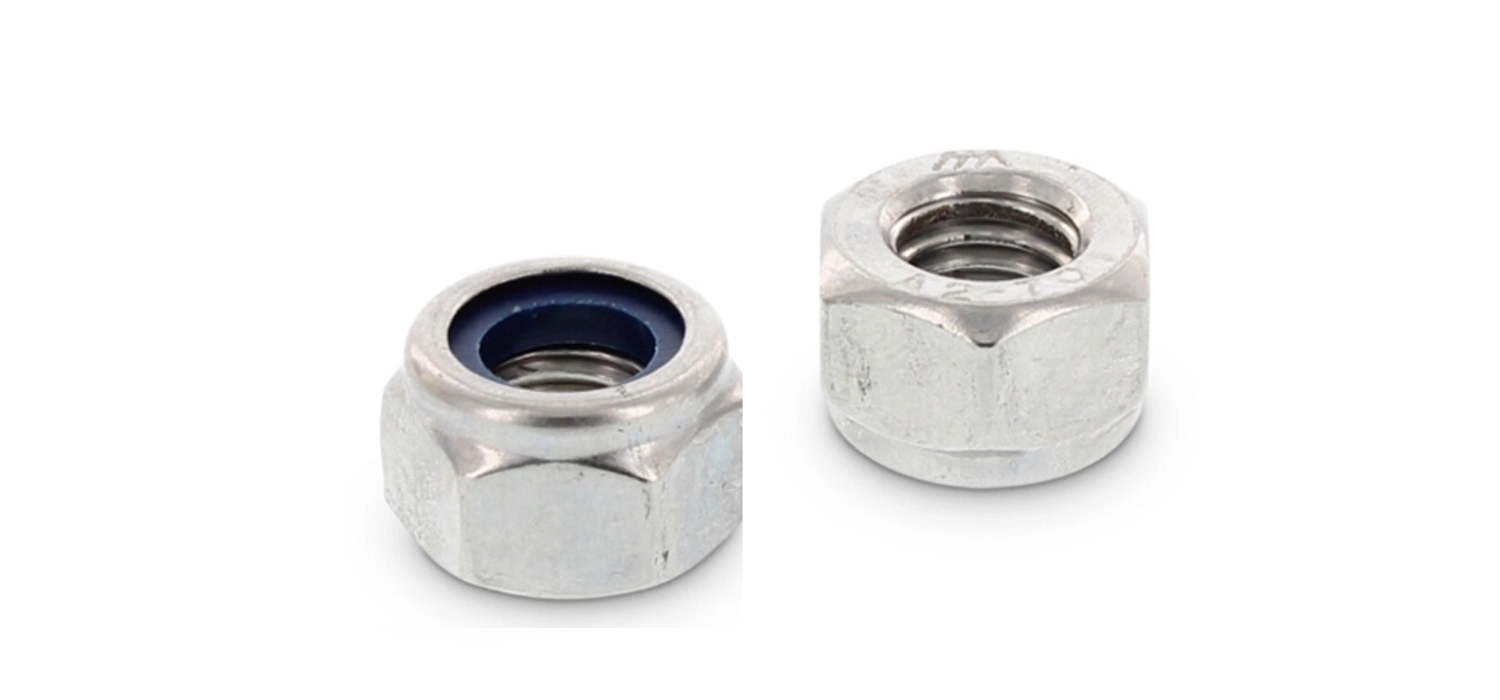

DIN 982 A4-70 high self-locking Nut

Assortment

Technical characteristics

DIN 982 A4-70 high self-locking Nut
DIN 982 A4-70 high self-locking Nut креслення

Self-locking Nut it is a nut used in connection elements that are constantly under the influence of dynamic loads, and especially vibration, which can cause untwisting. Contouring in DIN 982 is due to the nylon ring, in which the thread is cut when twisting.

Scope DIN 982 is used in mechanical engineering, construction, warehousing equipment, lifting equipment, agricultural machinery, tools, etc.

Material Stainless Steel. Strength class A4-70 allows the use of bolts at significant temperature differences and in aggressive and humid environments.

No coating.

Popular name Lock nut

DIN 982 A4-70 high self-locking Nut
DIN 982 A4-70 high self-locking Nut креслення

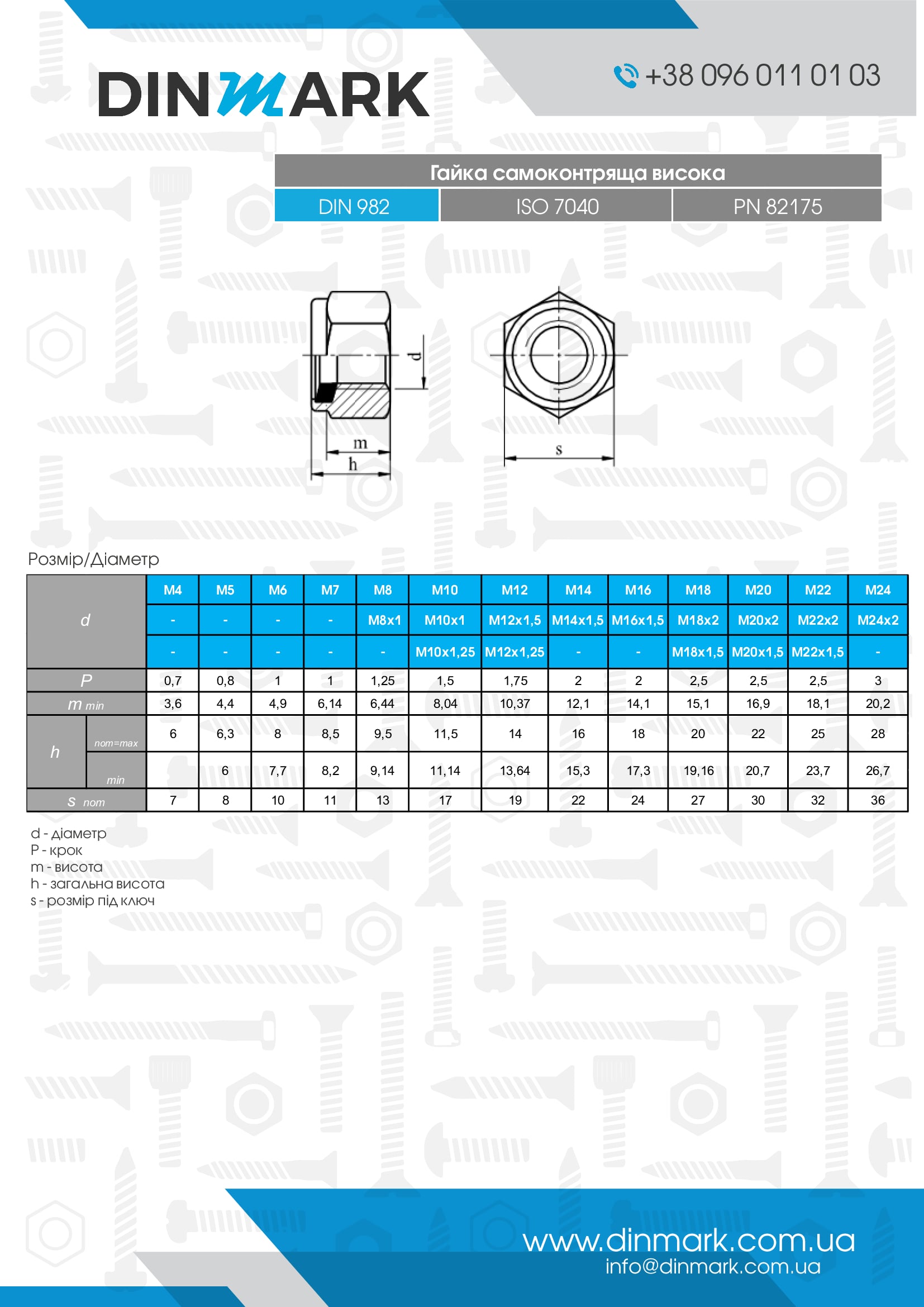

DIN 982 A4-70 high self-locking Nut pdf Download the drawing PDF

delivary WARNING

delivary delivary Delivery

delivary delivary Payment

delivary delivary Guarantee

Register and get a discount on all products 2%
Minimum order amount 1200 Hrn
nova-poshta
Self-pickup from department Nova Post
nova-poshta
Self-pickup from post machines Nova Post
nova-poshta
Address delivery by courier Nova Post
mist
Self-pickup from our office in Lviv
Cashless for legal entities and individuals According to the account or the terms of the individual contract
Exchange or return within 14 days

Specifications

Fastening groupStainless steel fasteners
StandardDIN 982ISO 7040
MaterialStainless steel A4
Diameter, mm4568101214162024
Height, mm6.388.511.51416182228
Packaging, pcs.102550100200
Type of carvingFull
Thread typeMetric
Threading step, mm0.70.811.251.51.7522.53
Turnkey size, mm781013171922243036
TypeHexagon
Popular nameLock nut
