DIN 3570 hot zinc U-shaped clamp

Copy the product name

Assortment

Technical characteristics

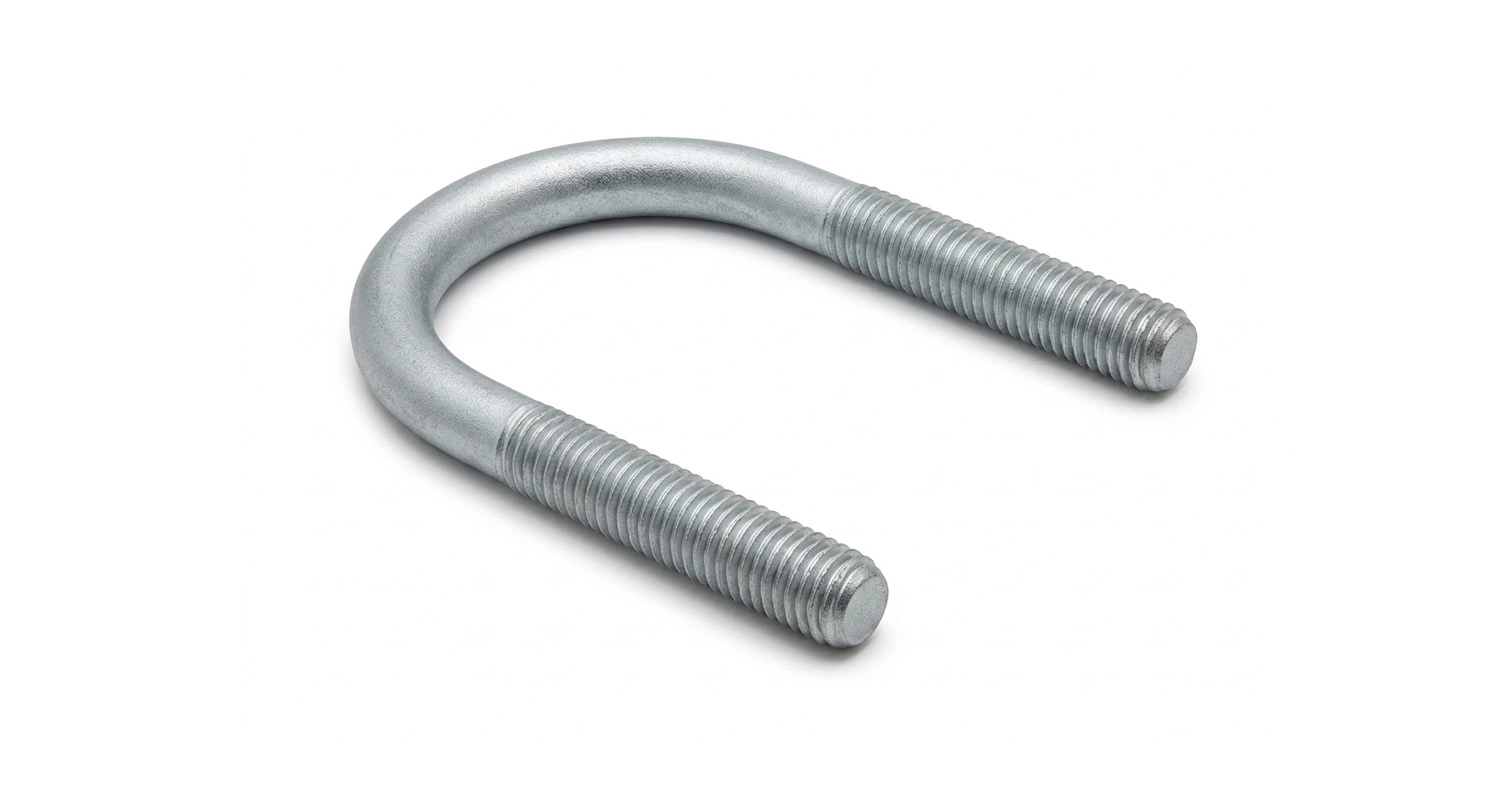

DIN 3570 hot zinc U-shaped clamp

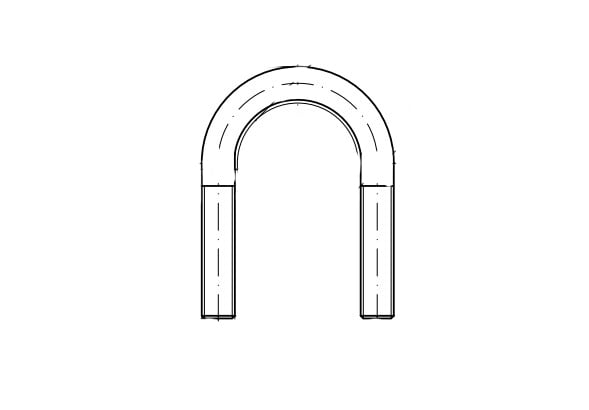

DIN 3570 hot zinc U-shaped clamp креслення

Clamps, the main task of this fastener is to perform a reliable and strong connection of structures, as well as to fix various pipes, cables, cables, ventilation shafts and other structures.

Scope of use With the help of clamps, the load is evenly distributed on the elements of structures that are formed during their operation.

The material is steel.

Coating Hot zinc protects against corrosion, if fasteners are planned to be used in aggressive conditions

Pay attention In the characteristics, the "Length" line indicates the diameter of the inner circle, when choosing the right size, check the drawing

icon Product reviewed 33 users per year
DIN 3570 hot zinc U-shaped clamp
DIN 3570 hot zinc U-shaped clamp креслення

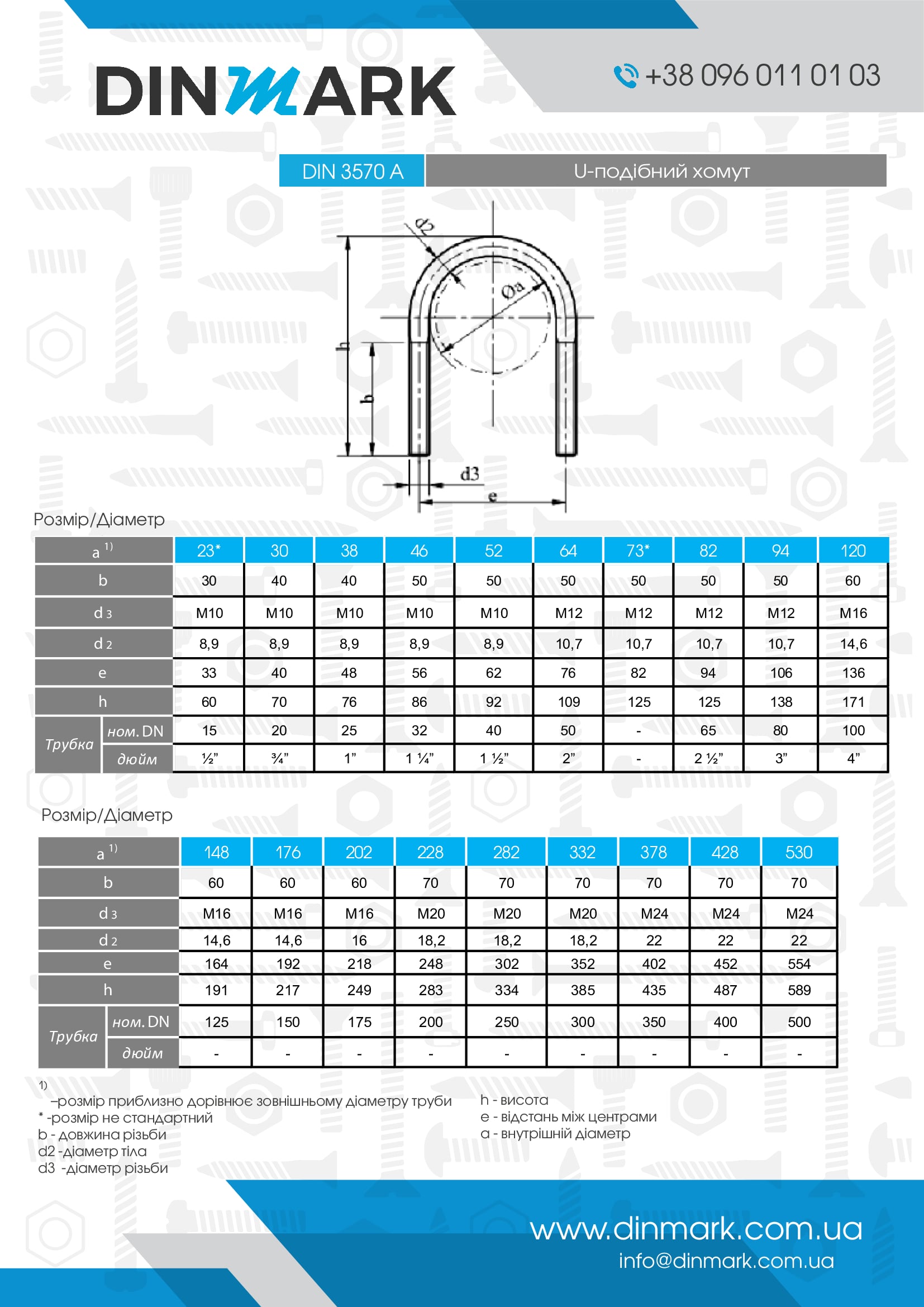

DIN 3570 hot zinc U-shaped clamp pdf Download the drawing PDF

delivary Warning

delivary delivary Delivery

delivary delivary Payment

delivary delivary Warranty

Register and get a discount on all products 2%
Minimum order amount 1200 UAH
nova-poshta
Pickup from branches New mail
nova-poshta
Pickup from post offices New mail
nova-poshta
Targeted delivery by courier New mail
mist
Pickup from our office in Lviv
Cashless for legal entities and individuals According to the invoice or the terms of the individual agreement
Exchange or refund within 14 days

Specifications

Fastening groupHigh-strength fastening
StandardDIN 3570
MaterialStal
CoatingHot zink
Diameter, mm10121620
Length, mm30384652648294120148176228332
Packaging, pcs.151050100
Show more
