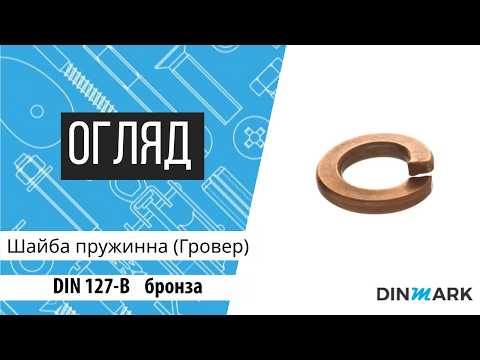

DIN 127-B bronze Spring washer (Grover)

Copy the product name

Assortment

Technical characteristics

DIN 127-B bronze Spring washer (Grover)
DIN 127-B bronze Spring washer (Grover) креслення

DIN 127-B is a standard spring washer (grommet) used to prevent self loosening of fasteners. DIN 127-B is a washer that consists of a ring that is divided and bent at the required angle to the main plane of the fastener. Such washers are placed under the heads of screws and bolts, nuts, and also put on studs to prevent the threaded part from loosening and to increase the clamping property. The difference between a B-shaped washer and an A-shaped washer is that its ends are straight, with a lower spring effect, but uniform contact with the surface.

Application: equipment manufacturing, mechanical engineering and in parts used in the interaction of external dynamic loads.

Material of manufacture: steel.

Coating: bronze. Bronze-coated fasteners are made of steel whose surface has been cleaned by chemical treatment. Compared to galvanized or zinc-passivated fasteners, its surface is less resistant to corrosion and should be used indoors only. Bronze-coated fasteners are brown in color, which makes them ideal for restoration work on furniture or antique wood.

icon Product bought 39 users per year
DIN 127-B bronze Spring washer (Grover)
DIN 127-B bronze Spring washer (Grover) креслення
DIN 127-B bronze Spring washer (Grover) pdf Download the drawing PDF

delivary Warning

delivary delivary Delivery

delivary delivary Payment

delivary delivary Warranty

Register and get a discount on all products 2%
Minimum order amount 1200 UAH
nova-poshta
Pickup from branches New mail
nova-poshta
Pickup from post offices New mail
nova-poshta
Targeted delivery by courier New mail
mist
Pickup from our office in Lviv
Cashless for legal entities and individuals According to the invoice or the terms of the individual agreement
Exchange or refund within 14 days

Specifications

Fastening groupBronze fastening
StandardDIN 127ГОСТ 6402-70DIN 7980PN 82008
MaterialStal
CoatingBronze
Diameter, mm345681012
Outer diameter, mm6.27.69.211.814.818.121.1
Thickness, mm0.80.91.21.622.22.5
Packaging, pcs.5001000
TypeSpring
