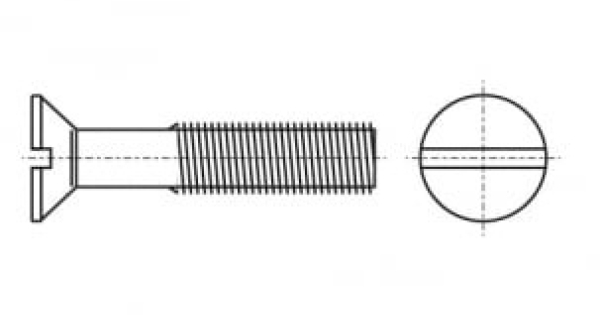

Countersunk head screw with straight slot DIN 963

Analogs DIN 963:

Buy DIN 963

DIN 963 brass Screw with countersunk head and straight slot

DIN 963 brass Screw with countersunk head and straight slot Fastening groupBrass fasteningStandardDIN 963MaterialBrassDiameter, mm2, 2.5, 3, 4, 5..Length, mm4, 5, 6, 8, 10..HeadHiddenPackaging, pcs.200, 1000, 100..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.4, 0.45, 0.5..AnalogISO 2009, PN 82207..

New

DIN 963 4,8 zinc Screw with countersunk head and straight slot

DIN 963 4,8 zinc Screw with countersunk head and straight slot

DIN 963 4,8 zinc Screw with countersunk head and straight slot StandardDIN 963MaterialStalStrength class4.8CoatingZincDiameter, mm2, 2.5, 3, 4, 5..Length, mm4, 5, 6, 8, 10..HeadHiddenPackaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.4, 0.45, 0.5..AnalogISO 2009, PN 82207..

New

DIN 963 A2 Screw with countersunk head and straight slot

DIN 963 A2 Screw with countersunk head and straight slot Fastening groupStainless steel..StandardDIN 963MaterialStainless steel..Diameter, mm1, 1.2, 1.4, 1.6..Length, mm2, 3, 4, 5, 6, 8..HeadHiddenPackaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Field of applicationProduction..Thread typeMetricThreading step, mm0.25, 0.3, 0.35..AnalogISO 2009, PN 82207..

New

DIN 963 polyamide Screw with countersunk head and straight slot

DIN 963 polyamide Screw with countersunk head and straight slot Fastening groupPolyamide..StandardDIN 963MaterialPoliamidDiameter, mm3, 4, 5, 6, 8Length, mm6, 8, 10, 12, 16..HeadHiddenPackaging, pcs.200Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 2009, PN 82207..

New

DIN 963 4,8 Screw with countersunk head and straight slot

DIN 963 4,8 Screw with countersunk head and straight slot

DIN 963 4,8 Screw with countersunk head and straight slot StandardDIN 963MaterialStalStrength class4.8CoatingUncoveredDiameter, mm1.4, 1.6, 2, 2.5..Length, mm3, 4, 5, 6, 8, 10..HeadHiddenPackaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.3, 0.35, 0.4..AnalogISO 2009, PN 82207..

New

DIN 963 A4 Screw with countersunk head and straight slot

DIN 963 A4 Screw with countersunk head and straight slot Fastening groupStainless steel..StandardDIN 963MaterialStainless steel..Diameter, mm1, 1.2, 1.4, 1.6..Length, mm2, 3, 4, 5, 6, 8..HeadHiddenPackaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.25, 0.3, 0.35..AnalogISO 2009

New

DIN 963 4,8 zinc yellow Screw with countersunk head and straight slot

DIN 963 4,8 zinc yellow Screw with countersunk head and straight slot

DIN 963 4,8 zinc yellow Screw with countersunk head and straight slot StandardDIN 963MaterialStalStrength class4.8CoatingYellow zinkDiameter, mm4, 5, 6, 8Length, mm10, 12, 16, 20..HeadHiddenType of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.7, 0.8..AnalogISO 2009, PN 82207..

Technical characteristics DIN 963

Countersunk head screw with straight slot DIN 963

Watch more expert videos on our YouTube channel

Експертний відеоблог

Specifications Countersunk head screw with straight slot DIN 963 | Dinmark>

Look over PDF drawings

Specifications

Fastening group

Stainless steel fasteners

Standard

DIN 963

Material

Stainless steel A2

Diameter, mm

1 1.2 1.4 1.6 1.7 2 2.3 2.5 2.6 3 3.5 4 5 6 8 10 12 14 16 18 20 24

Length, mm

2 3 4 5 6 8 10 12 14 16 18 20 22 25 28 30 35 40 45 50 55 60 65 70 75 80 85 90 95 100 110 120 130 140 150 160

Head

Hidden

Packaging, pcs.

500 200 1000 100 25 10 50

Type of carving

Full

Slot

Direct (PL)

Field of application

Production of equipment

Thread type

Metric

Threading step, mm

0.25 0.3 0.35 0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3

Analog

ISO 2009 PN 82207 ГОСТ 17475-80

Strength class

4.8

Coating

Uncovered

DIN 963 is a countersunk head screw, a fastener used in various fields (construction, woodworking, furniture production and many other areas). The main purpose of using countersunk head bolts is to make the fastening point invisible and flat.

Strength class DIN 963

The DIN 963 screw is made of steel of strength class 4.8.

DIN 963 fastening group

Depending on the material of manufacture, the DIN 963 countersunk head and straight slot screws are divided into groups:

Brass fastener - fasteners made of brass
Stainless steel fastener - fastener made of stainless steel
Polyamide fasteners - fasteners made of polyamide

Materials for the manufacture of DIN 963 screws

DIN 963 screws are available in a variety of materials:

Brass, brass screws are used if the system is subjected to frequent dynamic, vibration and cyclic loads. ,
Steel, strength class 4.8 and above, which can be additionally coated with zinc
Stainless steel grades A2 and A4
Polyamide, a polyamide screw can withstand mechanical shocks, does not crack or break under the permissible load factor.
