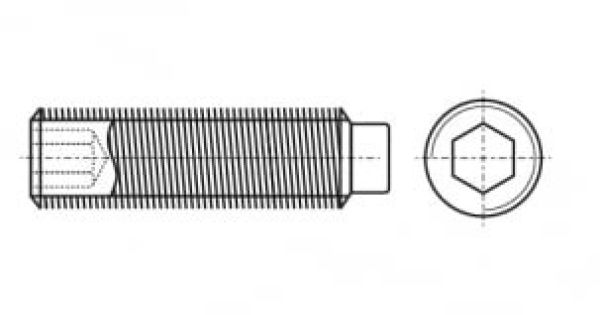

PN 82316 Setting screw with socket head and trunnion

Analogs PN 82316:

Buy PN 82316

DIN 915 steel set Screw with hexagon socket and pin

DIN 915 steel set Screw with hexagon socket and pin

DIN 915 steel set Screw with hexagon socket and pin Fastening groupHigh-strength..StandardDIN 915MaterialStalBrand of steel45HCoatingUncoveredDiameter, mm3, 4, 5, 6, 8, 10..Length, mm3, 4, 5, 6, 8, 10..Packaging, pcs.500, 200, 1000..Type of carvingFullSlotHexagonal..Field of applicationFurniture..Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..Turnkey size, mm1.5, 2, 2.5, 3..AnalogГОСТ 11075-93, ISO..Popular nameGujon

New

DIN 915 zinc set Screw with hexagon socket and pin

DIN 915 zinc set Screw with hexagon socket and pin

DIN 915 zinc set Screw with hexagon socket and pin Fastening groupHigh-strength..StandardDIN 915MaterialStalBrand of steel45HCoatingZincDiameter, mm3, 4, 5, 6, 8, 10..Length, mm4, 5, 6, 8, 10..Packaging, pcs.500, 200, 1000..Type of carvingFullSlotHexagonal..Field of applicationFurniture..Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..Turnkey size, mm1.5, 2, 2.5, 3..AnalogГОСТ 11075-93, ISO..Popular nameGujon

New

DIN 915 A2 set Screw with hexagon socket and pin

DIN 915 A2 set Screw with hexagon socket and pin Fastening groupStainless steel..StandardDIN 915MaterialStainless steel..Diameter, mm2, 2.5, 3, 4, 5..Length, mm2, 3, 4, 5, 6, 8..Packaging, pcs.500, 200, 250, 100..Type of carvingFullSlotHexagonal..Field of applicationFurniture..Thread typeMetricThreading step, mm0.4, 0.45, 0.5..Turnkey size, mm0.9, 1.3, 1.5, 2..AnalogГОСТ 11075-93, ISO..Popular nameGujon

New

DIN 915 A4 set Screw with hexagon socket and pin

DIN 915 A4 set Screw with hexagon socket and pin Fastening groupStainless steel..StandardDIN 915MaterialStainless steel..Diameter, mm2, 2.5, 3, 4, 5..Length, mm2, 3, 4, 5, 6, 8..Packaging, pcs.500, 200, 100, 25..Type of carvingFullSlotHexagonal..Field of applicationFurniture..Thread typeMetricThreading step, mm0.4, 0.45, 0.5..Turnkey size, mm0.9, 1.3, 1.5, 2..AnalogГОСТ 11075-93, ISO..Popular nameGujon

Technical characteristics PN 82316

Дивіться ще більше експертних відео на нашому Ютуб каналі

Експертний відеоблог

Specifications PN 82316 Setting screw with socket head and trunnion | Dinmark>

Look over PDF drawings

Specifications

Fastening group

Stainless steel fasteners

Standard

DIN 915

Material

Stainless steel A2

Diameter, mm

2 2.5 3 4 5 6 8 10 12 14 16 20 24

Length, mm

2 3 4 5 6 8 10 12 14 16 18 20 25 30 35 40 45 50 55 60 70 80 90 100 120

Packaging, pcs.

500 200 250 100 25 50 10 2000 1500 8000

Type of carving

Full

Slot

Hexagonal (INBUS)

Field of application

Furniture industry

Thread type

Metric

Threading step, mm

0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2 2.5 3

Turnkey size, mm

0.9 1.3 1.5 2 2.5 3 4 5 6 8 10 12

Analog

ГОСТ 11075-93 ISO 4028 PN 82316

Popular name

Gujon

Brand of steel

45H

Coating

Uncovered

PN 82316 is a set screw, a metal fastener that looks like a rod with a full thread. The main difference between a set screw and other types is the absence of a head. At its ends, there are special projections or recessed splines that help to strengthen the connection and fixation of structural parts.

Fastening group PN 82316

Depending on the material of manufacture, PN 82316 is divided into groups:

High-strength fasteners, screws made of high-strength steel.
Stainless fasteners, screws made of stainless steel

Materials for the manufacture of screws PN 82316

Set screws PN 82316 are made of various materials:

Steel, which can optionally be coated with zinc
Stainless steel of steel grades A2 and A4

The scope of use of screws PN 82316

Steel set screw with socket (gouge, threaded pin) Used for fixing two or more coaxial parts with a thread.
