PN 82456 Knurled head screw

Buy PN 82456

Correspondence table PN 82456

Overview

Specifications

Fastening groupStainless steel fasteners
StandardDIN 464
MaterialStainless steel A1
Diameter, mm3, 4, 5, 6, 8, 10
Length, mm4, 5, 6, 8, 10, 12, 16, 18, 20, 25, 30, 35, 40
HeadKhurled
Packaging, pcs. 10, 25, 50
Type of carvingFull
Thread typeMetric
Threading step, mm0.5, 0.7, 0.8, 1, 1.25, 1.5
AnalogГОСТ 21331-75
Strength class5.8
CoatingZinc

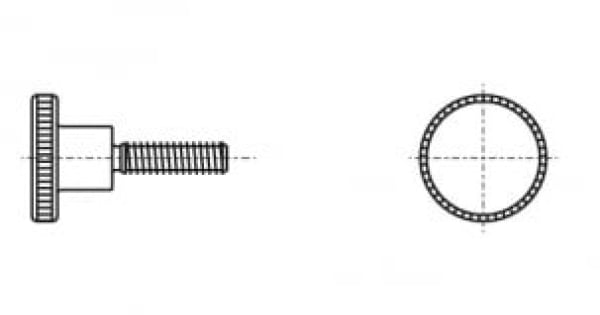

     PN 82456 is a screw with a high head and a threaded roller. This feature is an advantage compared to other hardware in the screws category. The head has a side rib with a chamfer, which makes it easy to loosen the screw. The design of the screw also provides for a cylindrical head, the metal rod is provided with a full metric thread. The head does not have a slot, as this type of screw is designed for fast manual tightening and loosening. They are used to create quick-release connections of various parts.

Strength class PN 82456


     The PN 82456 screws are made of steel of strength class 5.8.

Fastening group PN 82456


     PN 82456 screws are most often made of stainless steel and belong to the stainless steel fastener group.

Materials used to manufacture PN 82456 screws


     PN 82456 screws are manufactured in the following materials:

  • Steel, strength class 5.8, which can be additionally coated with zinc. Zinc (Plated) protects against corrosion if the fasteners are to be used in aggressive environments.
  • Stainless steel grade A1. Steel grade A1 allows the fasteners to be used at significant temperature changes and in aggressive and humid environments.


Application range of PN 82456 screws


     Screws PN 82456 are widely used in furniture production, and are also used to create quick-release structures in instrumentation. The high head of the special configuration provides easy and fast loosening, which is one of the main advantages of this fastener.
