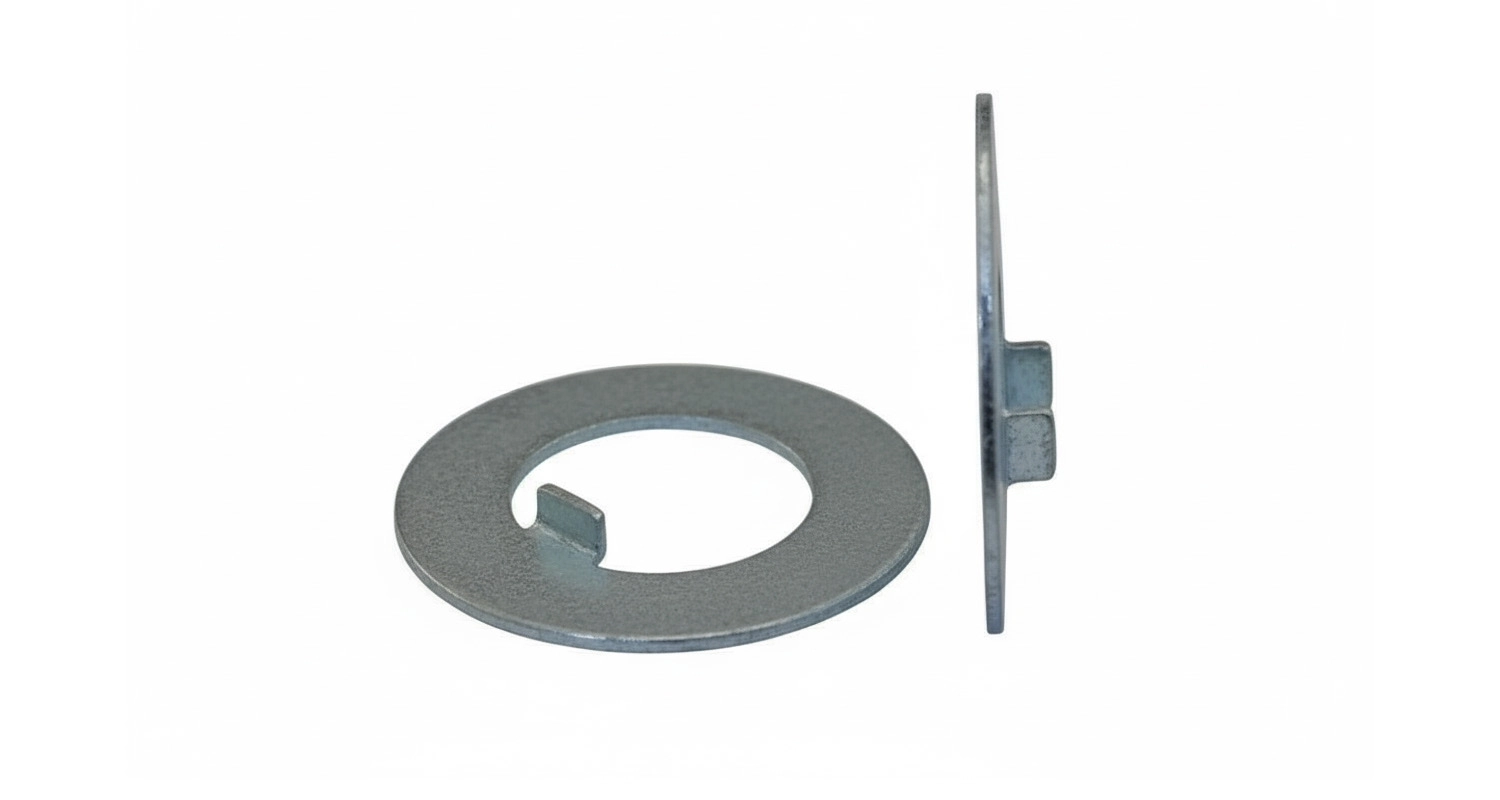

Washer DIN 462 M22 zinc

Copy the product name

Усе про товар

Technical characteristics

Similar products

Kits

Washer DIN 462 M22 zinc zoom
Washer DIN 462 M22 zinc креслення
Washer DIN 462 M22 zinc pdf Washer DIN 462 M22 zinc pdf Download the drawing PDF

Warning

Delivery

Payment

Warranty

Register and get a discount on all products 2%
Minimum order amount 1200 UAH
nova-poshta
Pickup from branches New mail
nova-poshta
Pickup from post offices New mail
nova-poshta
Targeted delivery by courier New mail
mist
Pickup from our office in Lviv
icon Безготівкова оплата для юридичних та фізичних осіб згідно з рахунком
Exchange or refund within 14 days
Article no. 462-22ц Copy the product article
Пакування
50 pcs.
Weight
0,37 kg
Ціна з ПДВ, 1 шт
12,36 UAH
Quantity, pcs.
icon Додайте ще шт. і заощадьте
10 876.60 грн

Специфікація

Article no.

462-22ц

TypeFlat
CoatingZinc
StandardDIN 462, PN 82016
Fastening groupHigh-strength fastening
Diameter, mm22
MaterialStal
Packaging, pcs.50
Outer diameter, mm40
Thickness, mm1
Show more Collapse img
Show more
icon
Washer DIN 462 M22 zinc
Washer DIN 462 M22 zinc креслення

A washer with an internal projection is a fastener used in conjunction with a slotted nut DIN 1804. It is installed between the part that is clamped on the shaft (bearing, bushing) and the slotted nut. The inner leg is wound into a longitudinal groove, which allows you to fix it from turning, and the outer part of the washer bends into the groove of the slotted nut when it is clamped to the end, which makes it impossible to unscrew it.

Scope DIN 462 is used in shipbuilding, industry, construction for reliable fixation of structural fasteners. The internal antenna prevents self-unscrewing of threaded connections under dynamic impact and vibration.

Material high-strength structural alloy steel.

Coating Zinc (Plated) protects against corrosion if fasteners are intended to be used in aggressive environments.
