Bolt ART 88912 M10x40 10.9 toothed

Скопіювати назву товару

Assortment

Technical characteristics

Similar products

Kits

Bolt ART 88912 M10x40 10.9 toothed
Bolt ART 88912 M10x40 10.9 toothed креслення
Bolt ART 88912 M10x40 10.9 toothed pdf Download the drawing PDF

delivary Warning

delivary delivary Delivery

delivary delivary Payment

delivary delivary Warranty

Register and get a discount on all products 2%
Minimum order amount 1200 UAH
nova-poshta
Pickup from branches New mail
nova-poshta
Pickup from post offices New mail
nova-poshta
Targeted delivery by courier New mail
mist
Pickup from our office in Lviv
Cashless for legal entities and individuals According to the invoice or the terms of the individual agreement
Exchange or refund within 14 days

Specifications

Article no.

88912-10-40-10,9з

Скопіювати артикул товару
Fastening groupHigh-strength fastening
StandardART 88912
MaterialStal
Strength class10.9
CoatingUncovered
Diameter, mm10
Length, mm40
Packaging, pcs.100
HeadCylindrical
Type of carvingFull
SlotHexagonal (INBUS)
Thread typeMetric
Threading step, mm1.5
Turnkey size, mm8
Show more
icon
Show more

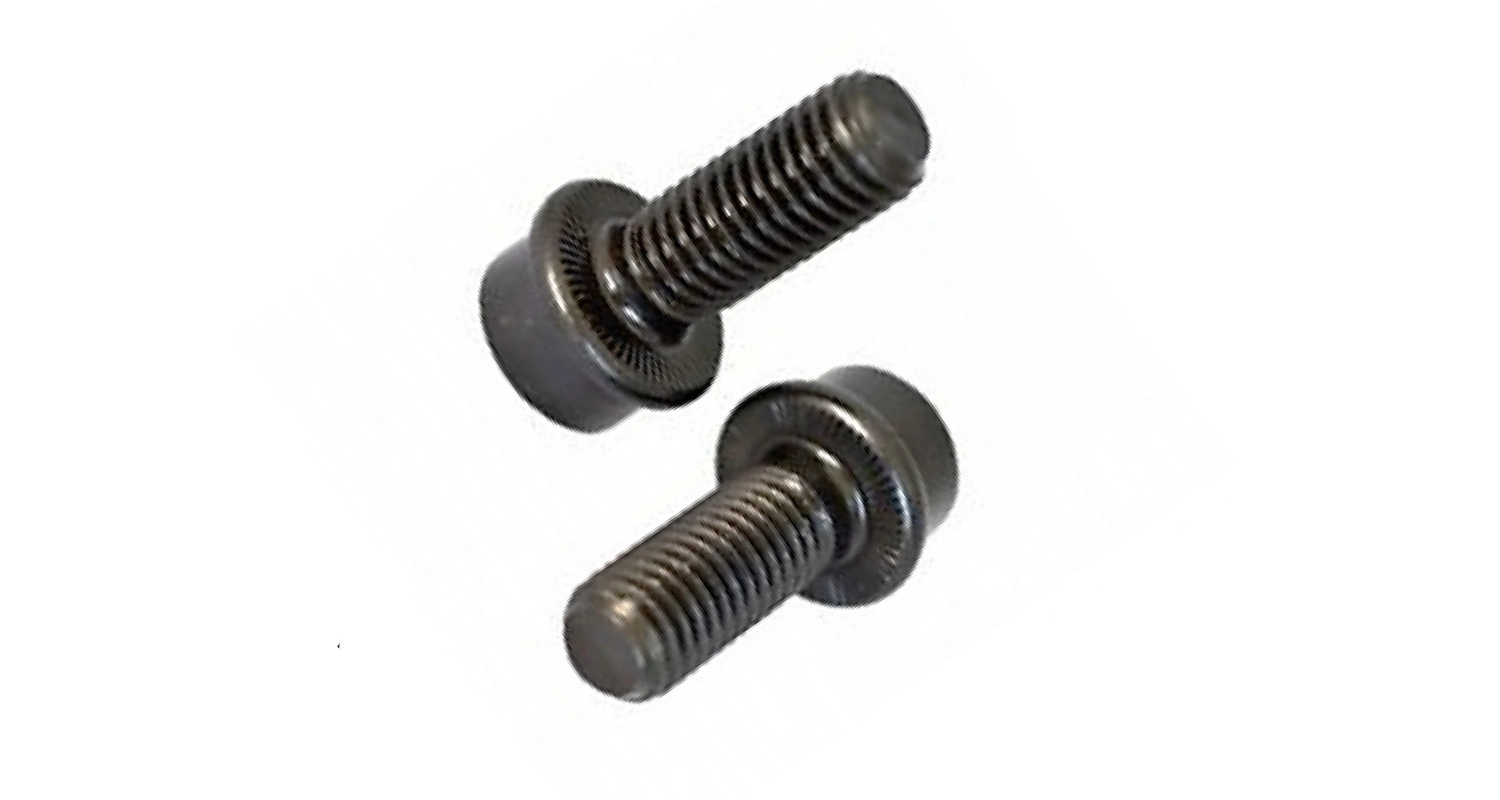

Bolt ART 88912 M10x40 10.9 toothed

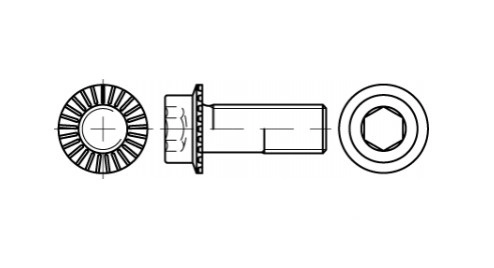

Bolt ART 88912 M10x40 10.9 toothed креслення

The toothed flange protects the bolt from self-unscrewing during load moments, increasing the frictional force of touch. The notched flange fits snugly to the base of the material, preventing it from breaking under force.

The peculiarity of the ART 88912 bolt is that it is ideal for screw connections, when the bolt is screwed into the part, without fixing the nut on the reverse side, and the thread is cut in the body of the part. In such cases, locking from untwisting is required just under the bolt cap. And in order not to use the engraver, the design of the hat provides a flange with notches, which is much more effective at constant vibration loads. It can be used in through holes, with a fixing nut, but from unscrewing, the connection, in this case, must be protected in the place of clamping the nut to the part and the design features of the bolt cap will play almost no role. Therefore, it will not be a rational use of such hardware.

Scope mainly mechanical engineering, instrument making, automotive industry.

Material high-strength structural alloy steel. High strength class 10.9 allows the use of bolts for high-load connections.

Without coverage.

Please note: The color of the product may vary depending on the production batch (black or gray). This does not affect the technical characteristics and quality of the product.
