Nut anchor for stone М6х8,5mm 4 crowns with flange A1

Copy the product name

Усе про товар

Technical characteristics

Similar products

Kits

Nut anchor for stone М6х8,5mm 4 crowns with flange A1 zoom

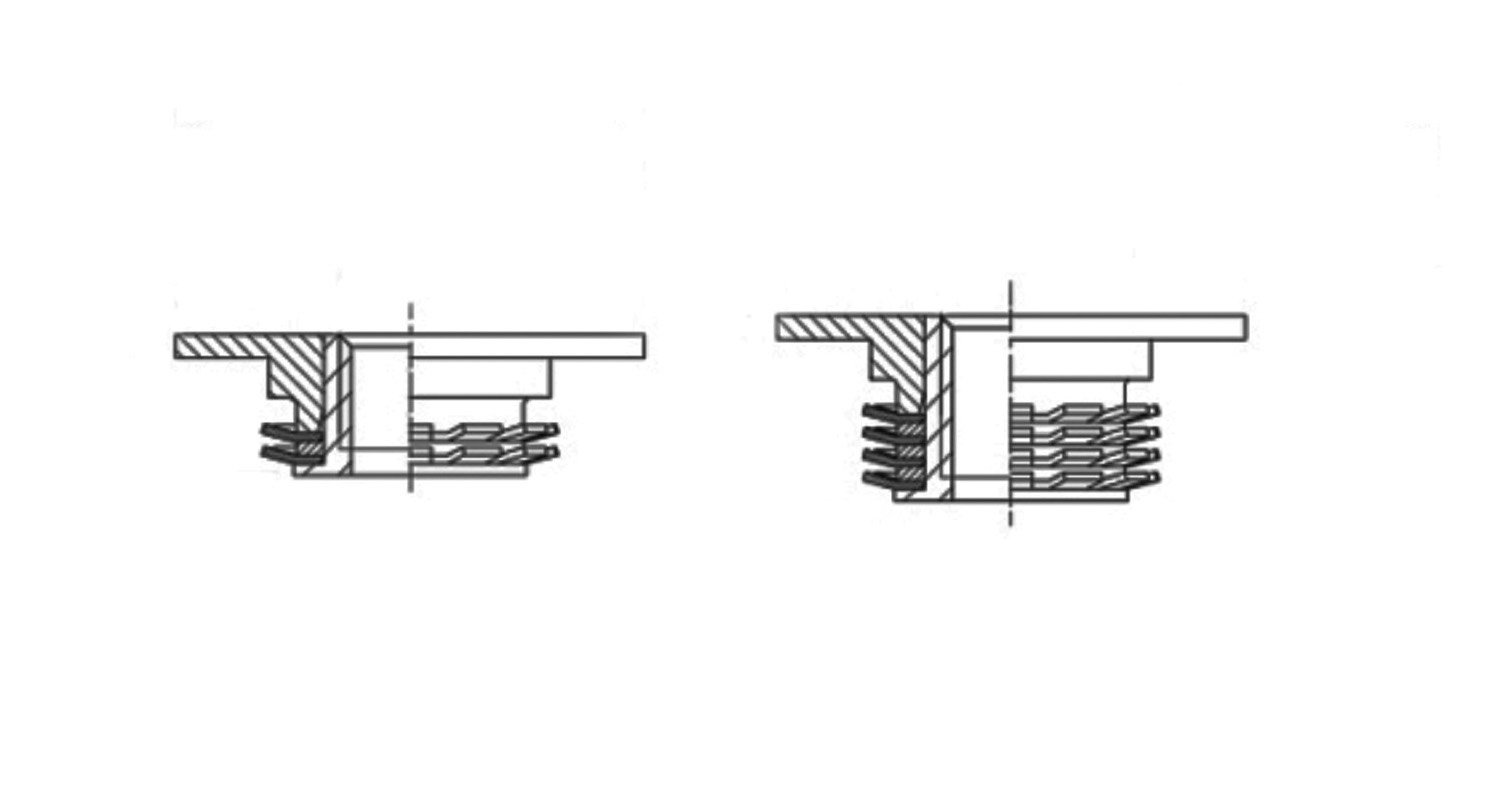

Nut anchor for stone М6х8,5mm 4 crowns with flange A1 креслення
Nut anchor for stone М6х8,5mm 4 crowns with flange A1 креслення
Nut anchor for stone М6х8,5mm 4 crowns with flange A1 креслення
Nut anchor for stone М6х8,5mm 4 crowns with flange A1 креслення

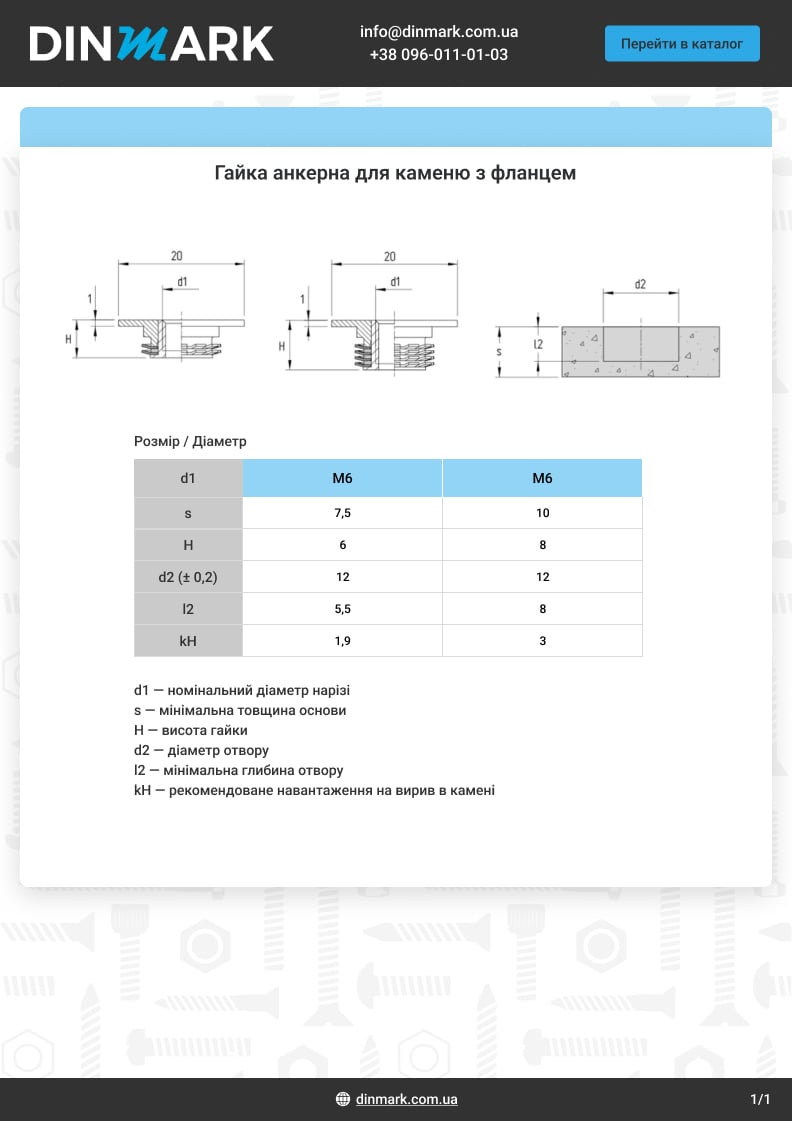

Nut anchor for stone М6х8,5mm 4 crowns with flange A1 pdf Nut anchor for stone М6х8,5mm 4 crowns with flange A1 pdf Download the drawing PDF

Warning

Delivery

Payment

Warranty

Register and get a discount on all products 2%
Minimum order amount 1200 UAH
nova-poshta
Pickup from branches New mail
nova-poshta
Pickup from post offices New mail
nova-poshta
Targeted delivery by courier New mail
mist
Pickup from our office in Lviv
icon Безготівкова оплата для юридичних та фізичних осіб згідно з рахунком
Exchange or refund within 14 days
Article no. 6-8,5-1ф Copy the product article
Пакування
100 pcs.
Weight
0,37 kg
Ціна з ПДВ, 1 шт
109,99 UAH
Quantity, pcs.
icon Додайте ще шт. і заощадьте
10 876.60 грн

Специфікація

Article no.

6-8,5-1ф

Field of applicationConstruction, Furniture assembly, Facade works
Base materialStone, Granite
ColorWhite
Hole diameter12
StandardN920E
Fastening groupStainless steel fasteners
Diameter, mm6
MaterialStainless steel A1, Пластик
Type of carvingFull
Thread typeMetric
Packaging, pcs.100
Height, mm8
Show more Collapse img
Show more
icon
Nut anchor for stone М6х8,5mm 4 crowns with flange A1
Nut anchor for stone М6х8,5mm 4 crowns with flange A1 креслення
Nut anchor for stone М6х8,5mm 4 crowns with flange A1 Dinmark

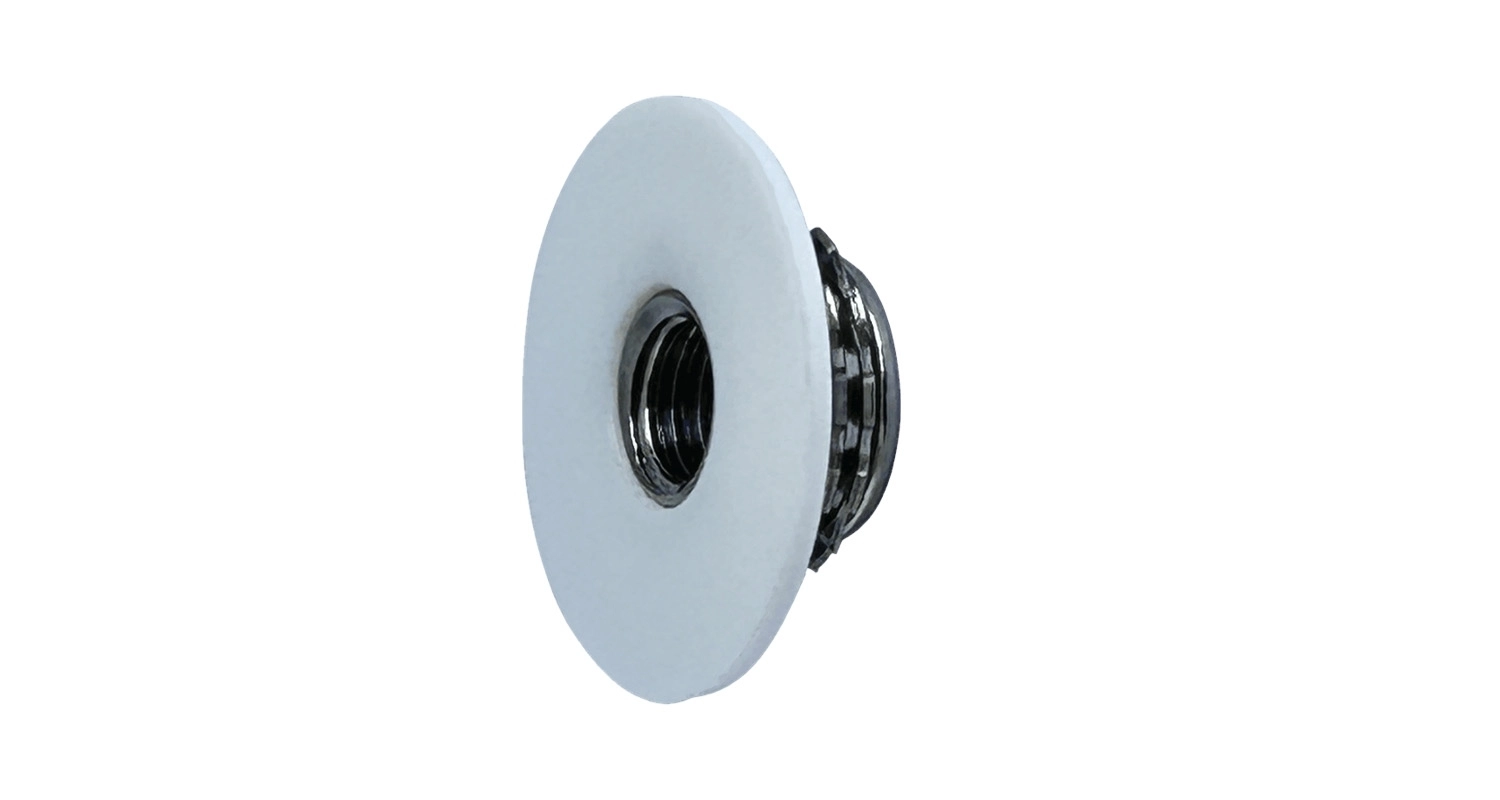

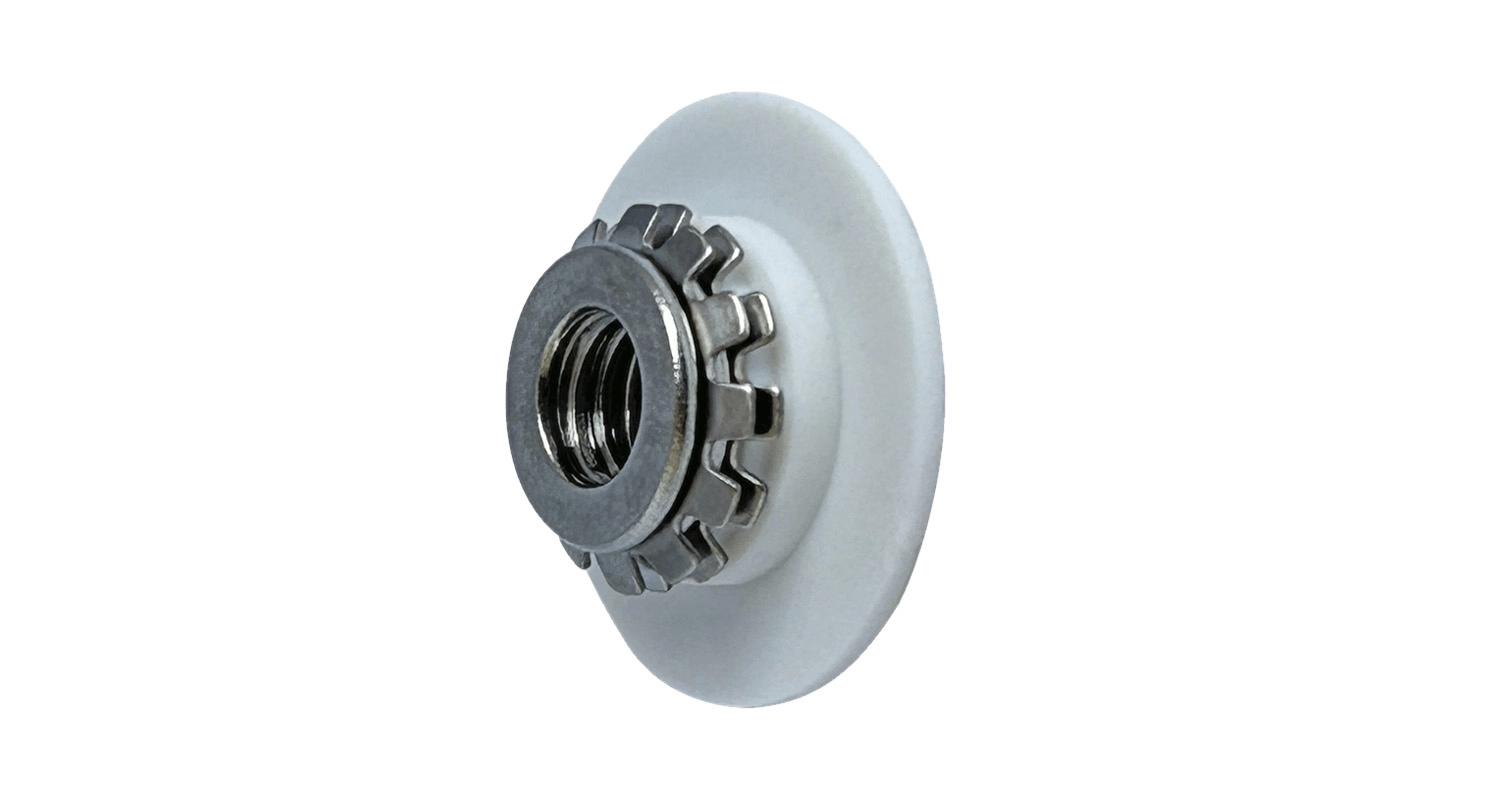

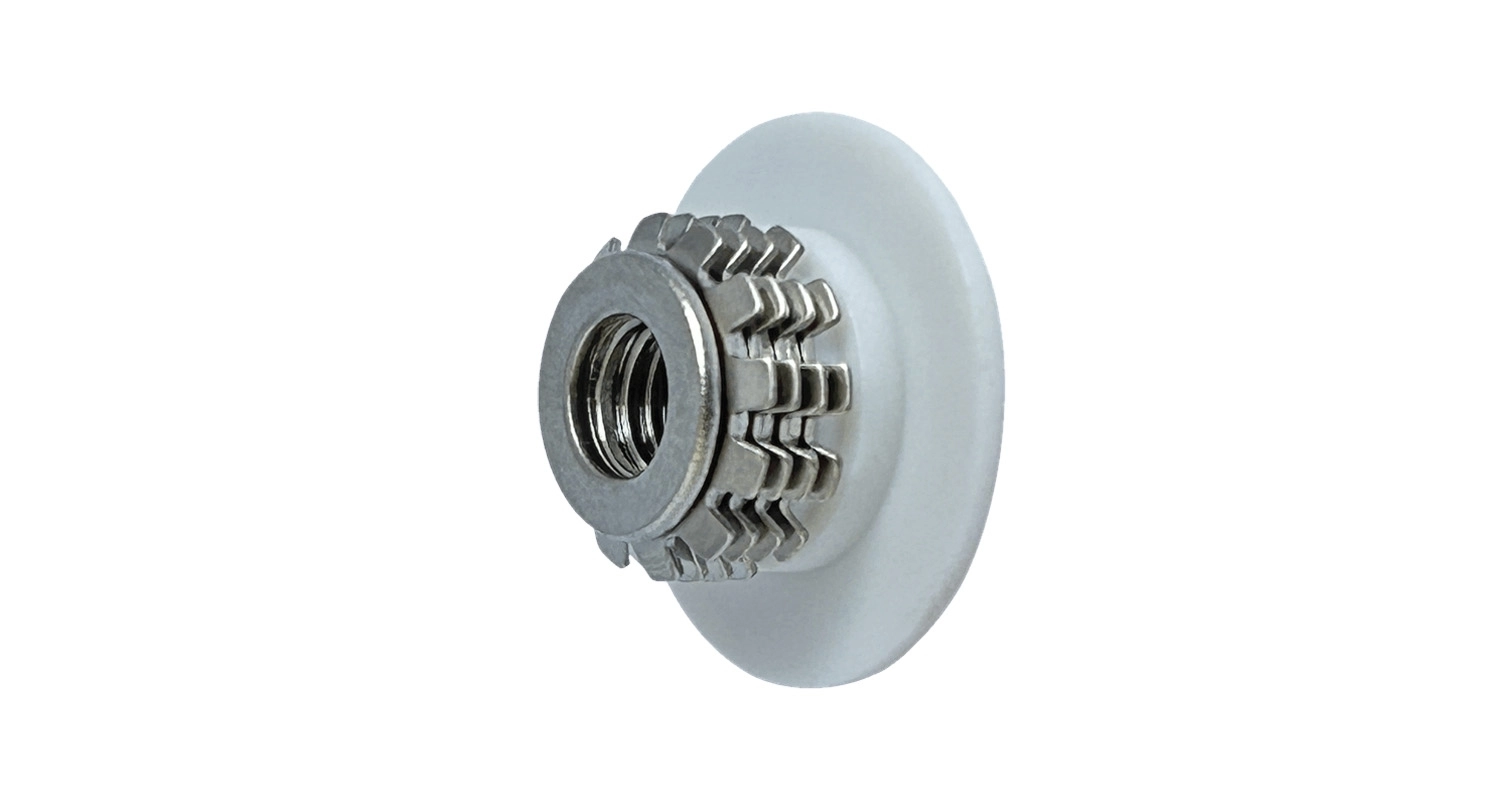

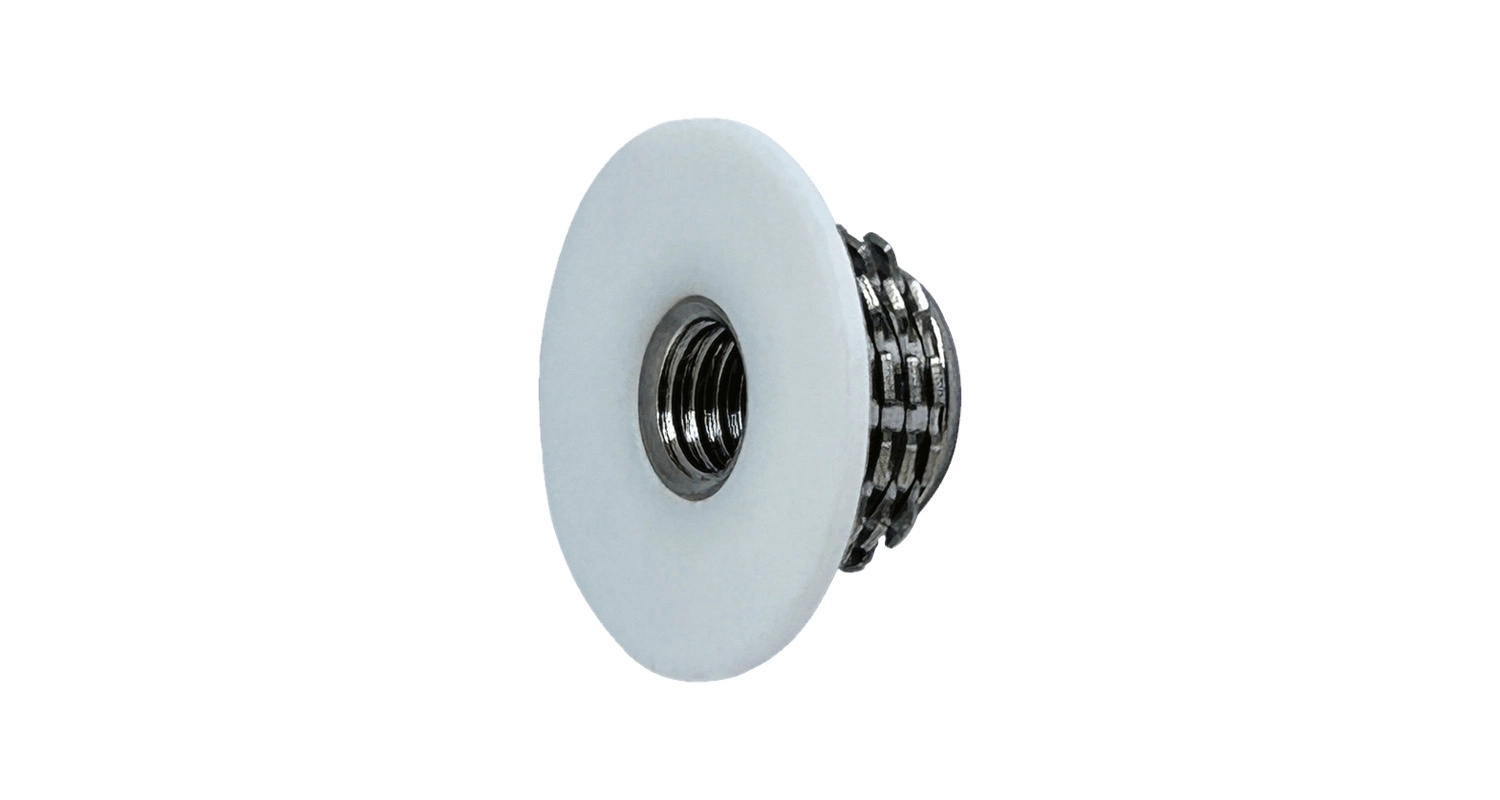

An anchor nut for stone with a flange consists of a threaded sleeve, several rows of serrated crowns, and a nylon flange. It is designed for fastening in very hard materials, namely: marble; granite; natural stone; sintered stone; porcelain tiles; composite materials; Corian acrylic stone; FBS (bakelite plywood); decorative HPL plastic, etc.

The features and advantages of this type of nut are:

  • The crowned design provides high pull-out resistance.
  • Simple and quick installation with the appropriate tools.
  • Fastened to the base without the use of sealants or adhesives.
  • The nut design prevents cracks in the base even with a small thickness (from 7.5 mm) due to the uniform distribution of load in the hole.
  • A 1 mm thick plastic flange ensures the nut is positioned in the hole, protects against small particles of material and dirt, and acts as a gasket to protect the base surface from possible damage to the fastening element.

Scope of application: facade panels, ventilated facades, wall coverings, wall cladding, furniture, decor, interior and exterior, kitchen and sanitary elements, natural stone stairs, memorial structures, etc.

Material: The flanged anchor nut is made of AISI 303 stainless steel and PA6 polyamide.
