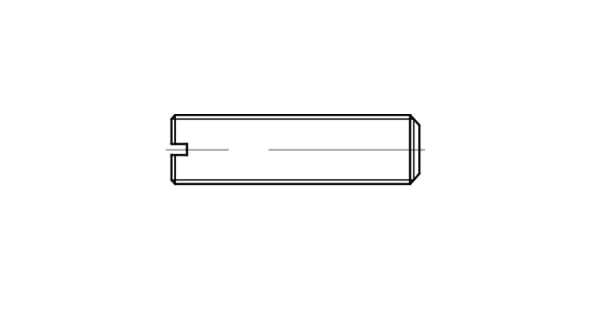

icon-arrow GOST 1477-93 Setting screw with straight slot and flat end

Buy ГОСТ 1477-93

New
DIN 551 steel set Screw with straight slot and flat end
Stal pngUncovered png
DIN 551 steel set Screw with straight slot and flat end
DIN 551 steel set Screw with straight slot and flat end Fastening groupHigh-strength..StandardDIN 551MaterialStalCoatingUncoveredDiameter, mm1.6, 2, 2.5, 3..Length, mm2, 3, 4, 5, 6, 8..Packaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.35, 0.4, 0.45..AnalogISO 4766, PN 82272..
New
DIN 551 zinc set Screw with straight slot and flat end
Stal pngZinc png
DIN 551 zinc set Screw with straight slot and flat end
DIN 551 zinc set Screw with straight slot and flat end Fastening groupHigh-strength..StandardDIN 551MaterialStalCoatingZincDiameter, mm3, 4, 5, 6, 8, 10..Length, mm3, 4, 5, 6, 8, 10..Packaging, pcs.500, 200, 250, 100..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 4766, PN 82272..
New
DIN 551 A1 set Screw with straight slot and flat end
Stainless steel A1 png
DIN 551 A1 set Screw with straight slot and flat end
DIN 551 A1 set Screw with straight slot and flat end Fastening groupStainless steel..StandardDIN 551MaterialStainless steel..Diameter, mm1.6, 2, 2.5, 3..Length, mm2, 3, 4, 5, 6, 8..Packaging, pcs.200, 100, 50Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.35, 0.4, 0.45..AnalogISO 4766, PN 82272..
New
DIN 551 polyamide set Screw with straight slot and flat end
Poliamid png
DIN 551 polyamide set Screw with straight slot and flat end
DIN 551 polyamide set Screw with straight slot and flat end Fastening groupPolyamide..StandardDIN 551MaterialPoliamidDiameter, mm4, 5, 6, 8, 10Length, mm6, 8, 10, 12, 16..Packaging, pcs.100Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.7, 0.8, 1, 1.25..AnalogISO 4766, PN 82272..
New
DIN 551 A4 set Screw with straight slot and flat end
Stainless steel A4 png
DIN 551 A4 set Screw with straight slot and flat end
DIN 551 A4 set Screw with straight slot and flat end Fastening groupStainless steel..StandardDIN 551MaterialStainless steel..Diameter, mm2.5, 3, 4, 5, 6..Length, mm3, 4, 5, 6, 8, 10..Packaging, pcs.200, 100..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.45, 0.5, 0.7..AnalogISO 4766, PN 82272..
New
DIN 551 brass set Screw with straight slot and flat end
Brass png
DIN 551 brass set Screw with straight slot and flat end
DIN 551 brass set Screw with straight slot and flat end Fastening groupBrass fasteningStandardDIN 551MaterialBrassDiameter, mm3, 4..Length, mm3, 4, 5, 6, 8, 10..Packaging, pcs.1000, 100Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 4766, PN 82272..

Technical characteristics ГОСТ 1477-93

Дивіться ще більше експертних відео на нашому Ютуб каналі img Експертний відеоблог

Specifications

Fastening group
Stainless steel fasteners
показати більше icon
Standard
DIN 551
показати більше icon
Material
Stainless steel A1
показати більше icon
Diameter, mm
1.6 2 2.5 3 4 5 6 8 10 12 16
показати більше icon
Length, mm
2 3 4 5 6 8 10 12 16 18 20 22 25 30 35 40 45 50 55 60 70 80 90
показати більше icon
Packaging, pcs.
200 100 50 2000
показати більше icon
Type of carving
Full
показати більше icon
Slot
Direct (PL)
показати більше icon
Thread type
Metric
показати більше icon
Threading step, mm
0.35 0.4 0.45 0.5 0.7 0.8 1 1.25 1.5 1.75 2
показати більше icon
Analog
ISO 4766 PN 82272 ГОСТ 1477-93
показати більше icon
Coating
Uncovered
показати більше icon

 GOST 1477-93 is a set screw with a straight slot and a flat end. The main difference between the set screw and other types is the absence of a head or cap. At its ends, there are special protrusions or recesses - slots - that strengthen the connection and fixation of structural parts.

Fastening group of GOST 1477-93


     Depending on the material of manufacture, GOST 1477-93 is divided into groups:

  • Stainless fasteners - DIN 551 screws made of stainless steel
  • Brass fasteners - screws made of brass
  • Polyamide fasteners - screws made of polyamide


Materials for the manufacture of GOST 1477-93 screws


     Screws of GOST 1477-93 are made of the following materials:

  • Steel, which can be additionally coated with zinc.
  • Stainless steel A2, A4, A5. It allows the fasteners to be used at significant temperature drops and in aggressive and humid environments. Also, this material does not require additional coating.
  • Brass. Brass bolts are used if the system is subjected to frequent dynamic, vibration, and cyclic loads.
  • Polyamide withstands mechanical shocks, does not crack or break at the permissible load factor.


Scope of use of GOST 1477-93 screws


     Setting screws of GOST 1477-93 are widely used in many branches of industrial production. Such products are used in mechanical engineering, automotive industry, assembly of aircraft, machine tools, and other mechanisms and assemblies. Set screws can also be used in construction, assembly of metal frames and many other structures. They are durable and resistant to mechanical stress.
