GOST R 50383-92 Setting screw with straight slot and tapered end

Analogues ГОСТ Р 50383-92:

Correspondence table

Buy ГОСТ Р 50383-92

DIN 553 A1 set Screw with straight slot and tapered end - Інтернет-магазин Dinmark

DIN 553 A1 set Screw with straight slot and tapered end

Stainless steel A1 png
Assortment
Delivery by Post across Ukraine svg
Fastening groupStainless steel..
StandardDIN 553
MaterialStainless steel..
Diameter, mm1.6, 2, 2.5, 3..
Length, mm2, 3, 4, 5, 6, 8..
Packaging, pcs.200, 100, 50
Type of carvingFull
SlotDirect (PL)
Thread typeMetric
Threading step, mm0.35, 0.4, 0.45..
AnalogISO 7434, PN 82273..
DIN 553 steel set Screw with straight slot and tapered end - Інтернет-магазин Dinmark

DIN 553 steel set Screw with straight slot and tapered end

Uncovered png
Assortment
Delivery by Post across Ukraine svg
StandardDIN 553
CoatingUncovered
Diameter, mm1.6, 2, 2.5, 3..
Length, mm2, 3, 4, 5, 6, 8..
Packaging, pcs.200, 1000
Type of carvingFull
SlotDirect (PL)
Thread typeMetric
Threading step, mm0.35, 0.4, 0.45..
AnalogISO 7434, PN 82273..
DIN 553 A1 zinc Screw with straight slot and tapered end - Інтернет-магазин Dinmark

DIN 553 A1 zinc Screw with straight slot and tapered end

Zinc png
Assortment
Delivery by Post across Ukraine svg
Fastening groupHigh-strength..
StandardDIN 553
CoatingZinc
Diameter, mm5, 6, 8, 10, 12
Length, mm8, 10, 12, 14, 16..
Packaging, pcs.200, 2000
Type of carvingFull
SlotDirect (PL)
Thread typeMetric
Threading step, mm0.8, 1, 1.25, 1.5..
AnalogISO 7434, PN 82273..
DIN 553 A4 set Screw with straight slot and tapered end - Інтернет-магазин Dinmark

DIN 553 A4 set Screw with straight slot and tapered end

Stainless steel A4 png
Assortment
Delivery by Post across Ukraine svg
Fastening groupStainless steel..
StandardDIN 553
MaterialStainless steel..
Diameter, mm2.5, 3, 4, 5, 6..
Length, mm3, 4, 5, 6, 8, 10..
Packaging, pcs.200, 100, 50
Type of carvingFull
SlotDirect (PL)
Thread typeMetric
Threading step, mm0.45, 0.5, 0.7..
AnalogISO 7434, PN 82273..
DIN 553 brass set Screw with straight slot and tapered end - Інтернет-магазин Dinmark

DIN 553 brass set Screw with straight slot and tapered end

Brass png
Assortment
Delivery by Post across Ukraine svg
Fastening groupBrass fastening
StandardDIN 553
MaterialBrass
Diameter, mm3, 4, 5, 6, 8
Length, mm4, 5, 6, 8, 10..
Type of carvingFull
SlotDirect (PL)
Thread typeMetric
Threading step, mm0.5, 0.7, 0.8, 1..
AnalogISO 7434, PN 82273..

Correspondence table ГОСТ Р 50383-92

Overview

Specifications

Fastening groupStainless steel fasteners
StandardDIN 553
MaterialStainless steel A1
Diameter, mm1.6, 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 16, 20
Length, mm2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 60
Packaging, pcs. 50, 100, 200
Type of carvingFull
SlotDirect (PL)
Thread typeMetric
Threading step, mm0.35, 0.4, 0.45, 0.5, 0.7, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5
AnalogISO 7434, PN 82273, ГОСТ 1476-93
CoatingUncovered

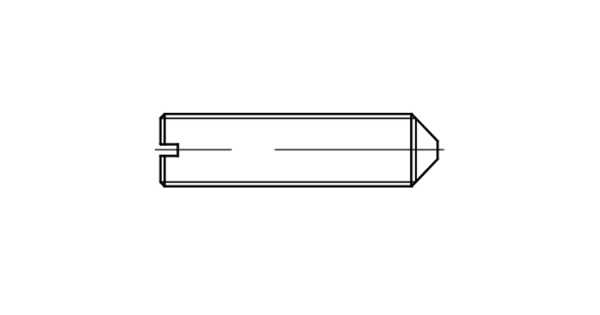

   GOST R 50383-92 is a set screw made in the form of a metal rod without a head, on one side of which there is a straight slot for tightening the screw with a screwdriver or power tool. The other end is pointed for easier installation of the screw.

Fastening group according to GOST R 50383-92


     Depending on the material of manufacture, screws of GOST R 50383-92 are divided into groups:

  • Stainless steel fasteners
  • Brass fasteners


Materials for the manufacture of screws GOST R 50383-92


     Screws of GOST R 50383-92 are made of the following materials:

  • Steel, which can be additionally coated with zinc. Zinc protects against corrosion if the fasteners are to be used in aggressive environments.
  • Brass. Brass screws are used if the system is subjected to frequent dynamic, vibration, and cyclic loads.
  • Stainless steel grades A1 and A4. Allows the use of fasteners at significant temperature changes and in aggressive and humid environments.


Scope of use of GOST R 50383-92 screws


     Setting screws of this type are widely used in construction and finishing works. They will be an excellent solution for assembling metal frame elements: the screws provide an invisible, strong connection. They can also be used in furniture production: the hidden installation of the screw does not violate the design solution and does not spoil the appearance of the finished furniture.
