Home / Fastening standards / PN 82317 Set screw with internal cone

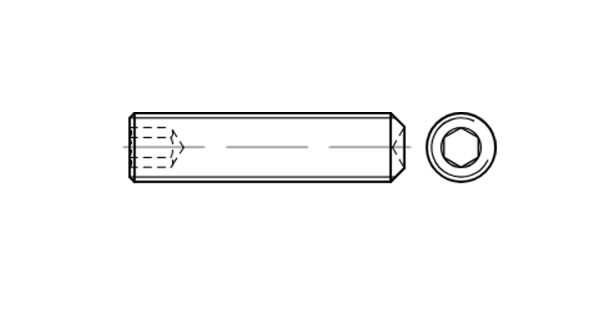

PN 82317 Set screw with internal cone

Analogues PN 82317:

Correspondence table

DIN 916

ISO 4029

ГОСТ 28964-91

Buy PN 82317

DIN 916 zinc set Screw with an internal hexagon and a drilled end - Інтернет-магазин Dinmark

DIN 916 zinc set Screw with an internal hexagon and a drilled end

Stal png45H pngZinc png
Assortment
Delivery by Post across Ukraine svg
StandardDIN 916
MaterialStal
Brand of steel45H
CoatingZinc
Diameter, mm3, 4, 5, 6, 8, 10..
Length, mm3, 4, 5, 6, 8, 10..
Packaging, pcs.500, 200, 1000..
Type of carvingFull
SlotHexagonal..
Thread typeMetric
Threading step, mm0.5, 0.7, 0.8, 1..
Turnkey size, mm1.5, 2, 2.5, 3..
AnalogГОСТ 28964-91, ISO..
Popular nameGujon
OEM numbers244372 Claas, 236552..
DIN 916 set steel Screw with an internal hexagon and a drilled end - Інтернет-магазин Dinmark

DIN 916 set steel Screw with an internal hexagon and a drilled end

Stal png45H pngUncovered png
Assortment
Delivery by Post across Ukraine svg
StandardDIN 916
MaterialStal
Brand of steel45H
CoatingUncovered
Diameter, mm2, 2.5, 3, 4, 5..
Length, mm2.5, 3, 4, 5, 6..
Packaging, pcs.500, 200, 250, 100..
Type of carvingFull
SlotHexagonal..
Thread typeMetric
Threading step, mm0.4, 0.45, 0.5..
Turnkey size, mm0.9, 1.3, 1.5, 2..
AnalogГОСТ 28964-91, ISO..
Popular nameGujon
OEM numbers244372 Claas, 236552..
DIN 916 set Screw with an internal hexagon and a drilled end steel, small step - Інтернет-магазин Dinmark

DIN 916 set Screw with an internal hexagon and a drilled end steel, small step

Stal png45H pngUncovered png
Assortment
Delivery by Post across Ukraine svg
StandardDIN 916
MaterialStal
Brand of steel45H
CoatingUncovered
Diameter, mm6, 8..
Length, mm6, 8, 10, 12, 16..
Type of carvingFull
SlotHexagonal..
Thread typeMetric
Threading step, mm0.75..
Turnkey size, mm3, 4, 5, 6, 8
AnalogГОСТ 28964-91, ISO..
Popular nameGujon
OEM numbers213825 Claas
DIN 916 A2 set Screw with an internal hexagon and a drilled end - Інтернет-магазин Dinmark

DIN 916 A2 set Screw with an internal hexagon and a drilled end

Stainless steel A2 png
Assortment
Delivery by Post across Ukraine svg
Fastening groupStainless steel..
StandardDIN 916
MaterialStainless steel..
Diameter, mm1.6, 2, 2.5, 3..
Length, mm2, 3, 4, 5, 6, 8..
Packaging, pcs.500, 200, 250, 100..
Type of carvingFull
SlotHexagonal..
Thread typeMetric
Threading step, mm0.35, 0.4, 0.45..
Turnkey size, mm0.7, 0.9, 1.3, 1.5..
AnalogГОСТ 28964-91, ISO..
Popular nameGujon
DIN 916 A4 set Screw with an internal hexagon and a drilled end - Інтернет-магазин Dinmark

DIN 916 A4 set Screw with an internal hexagon and a drilled end

Stainless steel A4 png
Assortment
Delivery by Post across Ukraine svg
Fastening groupStainless steel..
StandardDIN 916
MaterialStainless steel..
Diameter, mm1.6, 2, 2.5, 3..
Length, mm2, 3, 4, 5, 6, 8..
Packaging, pcs.500, 200..
Type of carvingFull
SlotHexagonal..
Thread typeMetric
Threading step, mm0.35, 0.4, 0.45..
Turnkey size, mm0.7, 0.9, 1.3, 1.5..
AnalogГОСТ 28964-91, ISO..
Popular nameGujon

Correspondence table PN 82317

Overview

Specifications
Fastening groupStainless steel fasteners
StandardDIN 916
MaterialStainless steel A2
Diameter, mm1.6, 2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 24
Length, mm2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 22, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100, 120
Packaging, pcs. 1, 25, 50, 100, 200, 250, 500, 700, 3000, 20000, 25000
Type of carvingFull
SlotHexagonal (INBUS)
Thread typeMetric
Threading step, mm0.35, 0.4, 0.45, 0.5, 0.7, 0.75, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3
Turnkey size, mm0.7, 0.9, 1.3, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12
AnalogГОСТ 28964-91, ISO 4029, PN 82317
Popular nameGujon
Brand of steel45H
CoatingUncovered
OEM numbers244372 Claas, 236552 Claas

 PN 82317 is a set screw, a metal fastener that looks like a rod with a full thread. The main difference between the set screw and other types is the absence of a head or cap. At its ends, there are special protrusions or recesses - slots - that strengthen the connection and fixation of parts.

Fastening group PN 82317


     Depending on the material of manufacture, PN 82317 is divided into groups:

  • High-strength fasteners, screws made of high-strength steel.
  • Stainless fasteners, screws made of stainless steel


Materials for the manufacture of screws PN 82317


     Set screws PN 82317 are made of various materials:

  • Steel, which can optionally be coated with zinc
  • Stainless steel of steel grades A2 and A4


The scope of use of screws PN 82317


     Steel set screw with socket (gouge, threaded pin) Used for fixing two or more coaxial parts with a thread.
