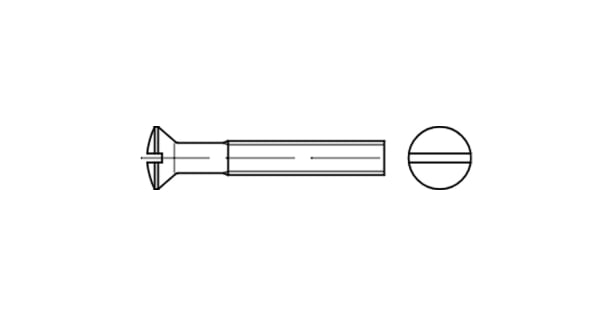

UNI 6110 Semi-countersunk head screw with straight slot

Analogs UNI 6110:

Buy UNI 6110

DIN 964 A2 Screw with semi-countersunk head and straight slot

DIN 964 A2 Screw with semi-countersunk head and straight slot Fastening groupStainless steel..StandardDIN 964MaterialStainless steel..Diameter, mm2, 2.5, 3, 3.5..Length, mm3, 4, 5, 6, 8, 10..HeadSemicircularPackaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.4, 0.45, 0.5..AnalogISO 2010..

New

DIN 964 4.8 zinc Screw with semi-countersunk head and straight slot

DIN 964 4.8 zinc Screw with semi-countersunk head and straight slot

DIN 964 4.8 zinc Screw with semi-countersunk head and straight slot StandardDIN 964MaterialStalStrength class4.8CoatingZincDiameter, mm3, 4, 5, 6, 8Length, mm6, 8, 10, 12, 16..HeadSemihiddenPackaging, pcs.200, 1000, 100..Type of carvingFullSlotDirect (PL)Thread typeMetricAnalogISO 2010..

New

DIN 964 A4 Screw with semi-countersunk head and straight slot

DIN 964 A4 Screw with semi-countersunk head and straight slot Fastening groupStainless steel..StandardDIN 964MaterialStainless steel..Diameter, mm2, 2.5, 3, 4, 5..Length, mm3, 4, 5, 6, 8, 10..HeadSemicircularPackaging, pcs.500, 200, 1000..Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.4, 0.45, 0.5..AnalogISO 2010..

Technical characteristics UNI 6110

Дивіться ще більше експертних відео на нашому Ютуб каналі

Експертний відеоблог

Specifications UNI 6110 Semi-countersunk head screw with straight slot | Dinmark>

Look over PDF drawings

Specifications

Fastening group

Stainless steel fasteners

Standard

DIN 964

Material

Stainless steel A2

Diameter, mm

2 2.5 3 3.5 4 5 6 8 10

Length, mm

3 4 5 6 8 10 12 14 16 18 20 22 25 28 30 35 40 45 50 55 60 65 70 75 80 90 95 100

Head

Semicircular

Packaging, pcs.

500 200 1000 100 50

Type of carving

Full

Slot

Direct (PL)

Thread type

Metric

Threading step, mm

0.4 0.45 0.5 0.6 0.7 0.8 1 1.25 1.5

Analog

ISO 2010 ГОСТ 17474-80

Strength class

4.8

Coating

Zinc

As a rule, to connect several parts of a structure, fasteners with countersunk heads are used on the outside. UNI 6110 is a semi-countersunk head screw with a straight slot. Due to their technical characteristics and design features, UNI 6110 screws create a reliable, durable connection of parts and also preserve the aesthetic appearance of the structure.

Strength class UNI 6110

UNI 6110 is made of steel of strength class 4.8.

Fastening group UNI 6110

UNI 6110 screws are most often made of stainless steel and belong to the stainless steel fasteners group.

Materials for the manufacture of UNI 6110 screws

UNI 6110 screws are made of the following materials:

Steel, which can be optionally coated with zinc. Zinc (Plated) protects against corrosion if the fastener is to be used in aggressive environments.
Stainless steel grades A2 and A4. Allows the use of fasteners at significant temperature changes and in aggressive and humid environments.

Application range of UNI 6110 bolts

UNI 6110 screws are universal fasteners that can be used in various manufacturing industries; they are used in mechanical engineering, machine tool building, instrumentation and more. Its aesthetically pleasing head makes it suitable for use in furniture production, construction and finishing work. The durable and inexpensive fastener ensures a secure connection of various structures.
