DIN 933 10,9 zinc Bolt with hexagon head and full thread
DIN 933 10,9 zinc Bolt with hexagon head and full thread креслення
play img

A fully threaded Bolt is a fastener consisting of a hexagonal head and a stud on which a metric thread is applied along its entire length.

Scope The DIN 933 bolt is used for connection and fastening of details, designs in construction and mechanical engineering.

Material high-strength structural alloy steel. High strength class 10.9 allows the use of bolts for high-load connections.

Coating Zinc protects against corrosion if you plan to use fasteners in aggressive conditions.

Analogs are GOST 7805 (with full thread), GOST 7798 and DIN 931 (with partial thread), ISO 4017, PN 82105.

DIN 933 10,9 zinc Bolt with hexagon head and full thread
DIN 933 10,9 zinc Bolt with hexagon head and full thread креслення
play img

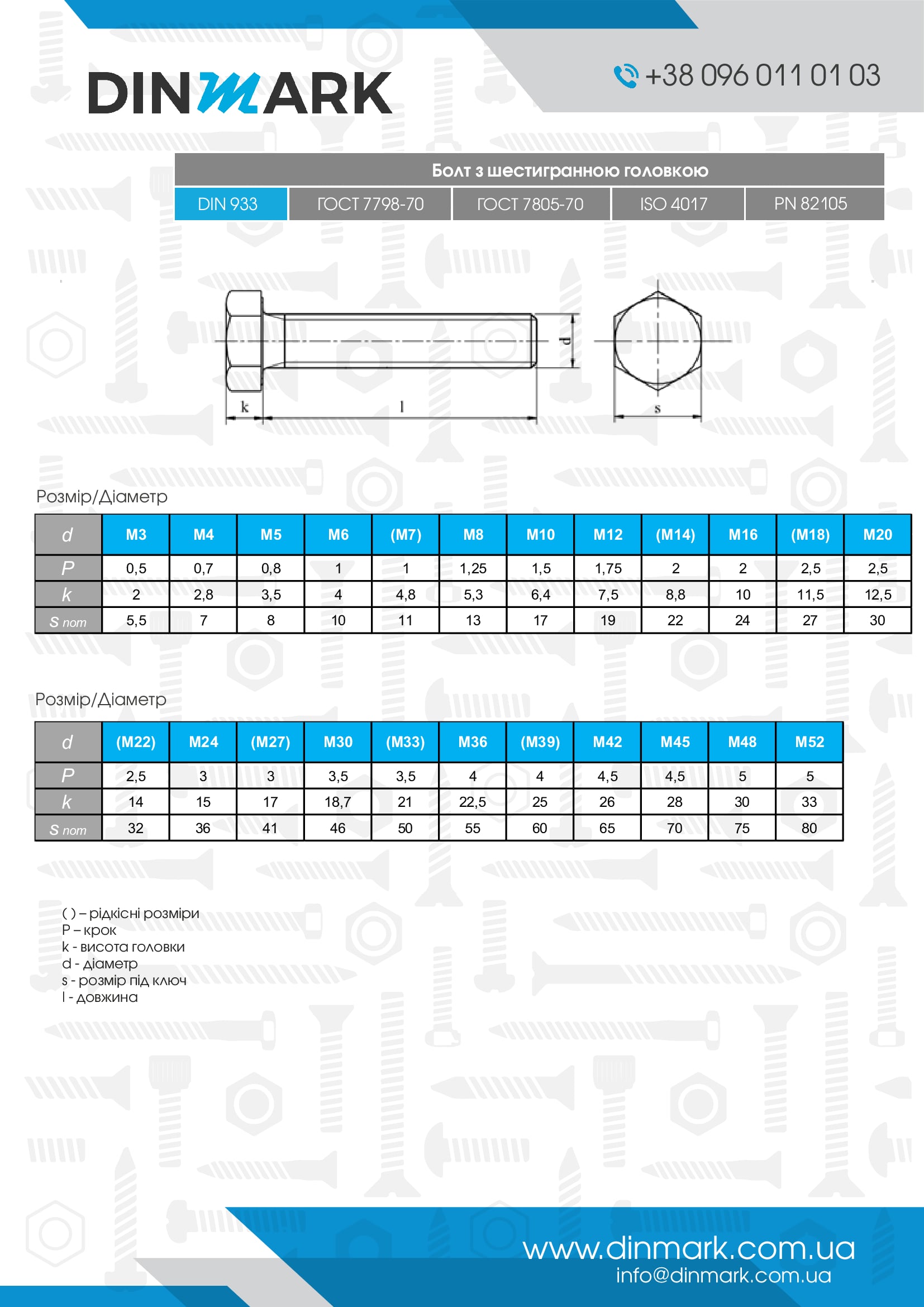

DIN 933 10,9 zinc Bolt with hexagon head and full thread pdf Download the drawing PDF

delivary WARNING

delivary delivary Delivery

delivary delivary Payment

delivary delivary Guarantee

Register and get a discount on all products 2%
Minimum order amount 1200 Hrn
nova-poshta
Self-pickup from department Nova Post
nova-poshta
Self-pickup from post machines Nova Post
nova-poshta
Address delivery by courier Nova Post
mist
Self-pickup from our office in Lviv
Cashless for legal entities and individuals According to the account or the terms of the individual contract
Exchange or return within 14 days

Specifications

Fastening groupHigh-strength fastening
StandardDIN 933ГОСТ 7805-70
OEM numbers040496 Geringhoff237375 Claas218908 Claas237372 Claas237463 Claas237465 Claas215144 Claas237573 Claas237456 Claas237571 Claas238125 Claas244376 Claas242466 Claas242458 Claas242406 Claas235536 Claas 237444 Claas237438 Claas235220 Claas212342 Claas244420 Claas237373 Claas235586 Claas244387 Claas772254 Claas233574 Claas237759 Claas244378 Claas19M7184 John Deere233419 Claas040947 Geringhoff19M7488 Geringhoff244223 Claas237384 Claas040726 Geringhoff239049 Claas215010 Claas 233893 Claas238419 Claas19M7171 John Deere19M3206 John Deere233405 Claas238976 Claas233999 Claas233390 Claas216100 Claas215693 Claas040548 Geringhoff19M7169 John Deere040683 Geringhoff215695 Claas244415 Claas237442 Claas239302 Claas237462 Claas233583 Claas236230 Claas236328 Claas235821 Claas236056 Claas235532 Claas237461 Claas237572 Claas216132 Claas630159 Claas237466 Claas238094 Claas237464 Claas236200 Claas237439 Claas237874 Claas237453 Claas238127 Claas
MaterialStal
Strength class10.9
CoatingZinc
Diameter, mm681012141618202224273036
Length, mm10121618202225303540455055606570758090100110120130140150160170180190200210220240260280300
Packaging, pcs.15102550100200500
HeadHexagonal
Type of carvingFull
Thread typeMetric
Threading step, mm11.251.51.7522.533.54
Turnkey size, mm10131719222427303236414655
Show more
