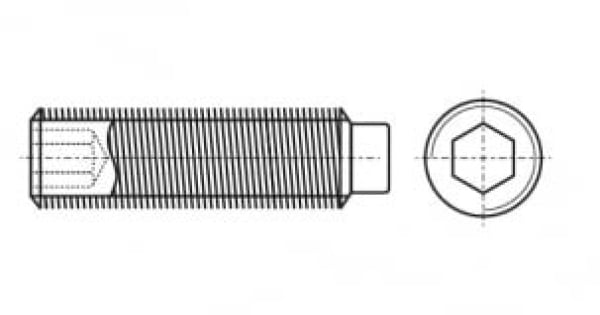

GOST 11075-93 Setting screw with socket head and pin

Analogues ГОСТ 11075-93:

Correspondence table

Buy ГОСТ 11075-93

DIN 915 steel set Screw with hexagon socket and pin - Інтернет-магазин Dinmark

DIN 915 steel set Screw with hexagon socket and pin

Stal png45H pngUncovered png
Assortment
Delivery by Post across Ukraine svg
Fastening groupHigh-strength..
StandardDIN 915
MaterialStal
Brand of steel45H
CoatingUncovered
Diameter, mm3, 4, 5, 6, 8, 10..
Length, mm3, 4, 5, 6, 8, 10..
Packaging, pcs.500, 200, 250, 100..
Type of carvingFull
SlotHexagonal..
Field of applicationFurniture..
Thread typeMetric
Threading step, mm0.5, 0.7, 0.8, 1..
Turnkey size, mm1.5, 2, 2.5, 3..
AnalogГОСТ 11075-93, ISO..
Popular nameGujon
DIN 915 zinc set Screw with hexagon socket and pin - Інтернет-магазин Dinmark

DIN 915 zinc set Screw with hexagon socket and pin

Stal png45H pngZinc png
Assortment
Delivery by Post across Ukraine svg
Fastening groupHigh-strength..
StandardDIN 915
MaterialStal
Brand of steel45H
CoatingZinc
Diameter, mm3, 4, 5, 6, 8, 10..
Length, mm4, 5, 6, 8, 10..
Type of carvingFull
SlotHexagonal..
Field of applicationFurniture..
Thread typeMetric
Threading step, mm0.5, 0.7, 0.8, 1..
Turnkey size, mm1.5, 2, 2.5, 3..
AnalogГОСТ 11075-93, ISO..
Popular nameGujon
DIN 915 A2 set Screw with hexagon socket and pin - Інтернет-магазин Dinmark

DIN 915 A2 set Screw with hexagon socket and pin

Stainless steel A2 png
Assortment
Delivery by Post across Ukraine svg
Fastening groupStainless steel..
StandardDIN 915
MaterialStainless steel..
Diameter, mm2, 2.5, 3, 4, 5..
Length, mm2, 3, 4, 5, 6, 8..
Packaging, pcs.500, 200..
Type of carvingFull
SlotHexagonal..
Field of applicationFurniture..
Thread typeMetric
Threading step, mm0.4, 0.45, 0.5..
Turnkey size, mm0.9, 1.3, 1.5, 2..
AnalogГОСТ 11075-93, ISO..
Popular nameGujon
DIN 915 A4 set Screw with hexagon socket and pin - Інтернет-магазин Dinmark

DIN 915 A4 set Screw with hexagon socket and pin

Stainless steel A4 png
Assortment
Delivery by Post across Ukraine svg
Fastening groupStainless steel..
StandardDIN 915
MaterialStainless steel..
Diameter, mm2, 2.5, 3, 4, 5..
Length, mm2, 3, 4, 5, 6, 8..
Type of carvingFull
SlotHexagonal..
Field of applicationFurniture..
Thread typeMetric
Threading step, mm0.4, 0.45, 0.5..
Turnkey size, mm0.9, 1.3, 1.5, 2..
AnalogГОСТ 11075-93, ISO..
Popular nameGujon

Correspondence table ГОСТ 11075-93

Overview

Specifications

Fastening groupStainless steel fasteners
StandardDIN 915
MaterialStainless steel A2
Diameter, mm2, 2.5, 3, 4, 5, 6, 8, 10, 12, 14, 16, 20, 24
Length, mm2, 3, 4, 5, 6, 8, 10, 12, 14, 16, 18, 20, 25, 30, 35, 40, 45, 50, 55, 60, 70, 80, 90, 100, 120
Packaging, pcs. 1, 10, 25, 50, 100, 200, 500, 2000, 8000, 19000
Type of carvingFull
SlotHexagonal (INBUS)
Field of applicationFurniture industry
Thread typeMetric
Threading step, mm0.4, 0.45, 0.5, 0.7, 0.8, 1, 1.25, 1.5, 1.75, 2, 2.5, 3
Turnkey size, mm0.9, 1.3, 1.5, 2, 2.5, 3, 4, 5, 6, 8, 10, 12
AnalogГОСТ 11075-93, ISO 4028, PN 82316
Popular nameGujon
Brand of steel45H
CoatingUncovered

   GOST 11075-93 is a set screw, a metal fastener that looks like a rod with a full thread. The main difference between a set screw and other types is the absence of a head. At its ends, there are special protrusions or recessed splines that help to strengthen the connection and fixation of structural parts.

Fastening group of GOST 11075-93


     Depending on the material of manufacture, GOST 11075-93 is divided into groups:

  • High-strength fasteners, screws are made of high-strength steel.
  • Stainless fasteners, screws are made of stainless steel


Materials for manufacturing screws in accordance with GOST 11075-93


     Set screws in accordance with GOST 11075-93 are made of various materials:

  • Steel, which can be additionally coated with zinc
  • Stainless steel of steel grades A2 and A4


Scope of application of screws of GOST 11075-93


     Steel set screw with a socket (gouge, threaded pin) Used for fixing two or more coaxial parts with a thread.
