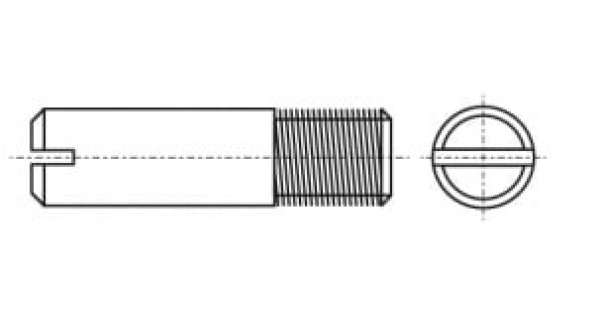

GOST 18746-80 Setting screw with straight slot

Analogs ГОСТ 18746-80:

Buy ГОСТ 18746-80

DIN 427 uncoated set Screw with straight slot 14H

DIN 427 uncoated set Screw with straight slot 14H

DIN 427 uncoated set Screw with straight slot 14H StandardDIN 427MaterialStalCoatingUncoveredDiameter, mm3, 4, 5, 6, 8, 10..Length, mm6, 8, 10, 12, 16..Packaging, pcs.100, 50Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 2342..

New

DIN 427 zinc set Screw with straight slot 14H

DIN 427 zinc set Screw with straight slot 14H

DIN 427 zinc set Screw with straight slot 14H Fastening groupHigh-strength..StandardDIN 427MaterialStalCoatingZincDiameter, mm3, 4..Length, mm6, 8, 10, 12, 16..Packaging, pcs.100, 50Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 2342..

New

DIN 427 A1 set Screw with straight slot

DIN 427 A1 set Screw with straight slot Fastening groupStainless steel..StandardDIN 427MaterialStainless steel..Diameter, mm3, 4..Length, mm6, 8, 10, 12, 16..Packaging, pcs.200, 100, 50Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 2342..

New

DIN 427 A4 set Screw with straight slot

DIN 427 A4 set Screw with straight slot Fastening groupStainless steel..StandardDIN 427MaterialStainless steel..Diameter, mm3, 4..Length, mm6, 8, 10, 12, 16..Packaging, pcs.200, 100, 50Type of carvingFullSlotDirect (PL)Thread typeMetricThreading step, mm0.5, 0.7, 0.8, 1..AnalogISO 2342..

Technical characteristics ГОСТ 18746-80

Дивіться ще більше експертних відео на нашому Ютуб каналі

Експертний відеоблог

Specifications GOST 18746-80 Setting screw with straight slot | Dinmark>

Look over PDF drawings

Specifications

Fastening group

Stainless steel fasteners

Standard

DIN 427

Material

Stainless steel A1

Diameter, mm

3 4 5 6 8 10 12

Length, mm

6 8 10 12 16 18 20 25 30 35 40 45 50 60

Packaging, pcs.

200 100 50

Type of carving

Full

Slot

Direct (PL)

Thread type

Metric

Threading step, mm

0.5 0.7 0.8 1 1.25 1.5 1.75

Analog

ISO 2342 ГОСТ 18746-80

Coating

Uncovered

GOST 18746-80 is a headless set screw, which is a metal rod with an incomplete metric thread. This set screw is designed to securely fasten metal products to each other, preventing lateral loosening.

Fastening group of GOST 18746-80

Most often, screws of State Standard GOST 18746-80 are made of stainless steel and belong to the stainless fasteners group.

Materials for the manufacture of GOST 18746-80 screws

Screws of GOST 18746-80 are made of the following materials:

Steel, which can be optionally coated with zinc. Zinc (Plated) protects against corrosion if the fasteners are to be used in aggressive environments.
Stainless steel grades A1 and A4. Allows the use of fasteners at significant temperature changes and in aggressive and humid environments.

Scope of use of GOST 18746-80 screws

The set screw is designed to fasten various components of machines and mechanisms to each other; it can also be used to fasten various building structures. Since the screw has no head, the pin is completely immersed in the hole and does not protrude above the surface. It has a small threaded portion, but provides a secure fit.
